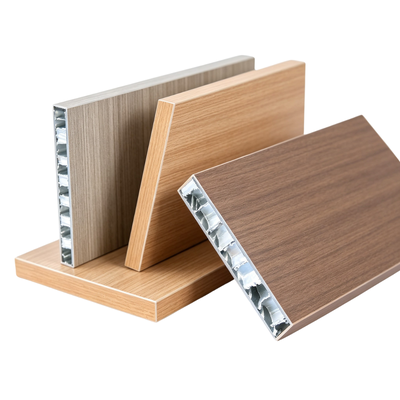

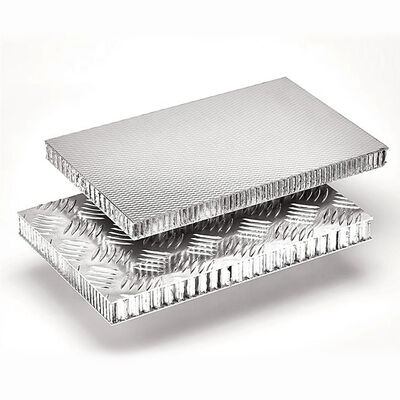

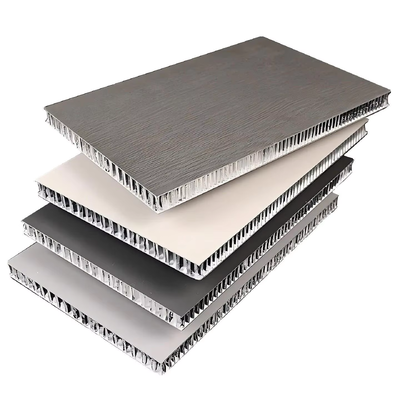

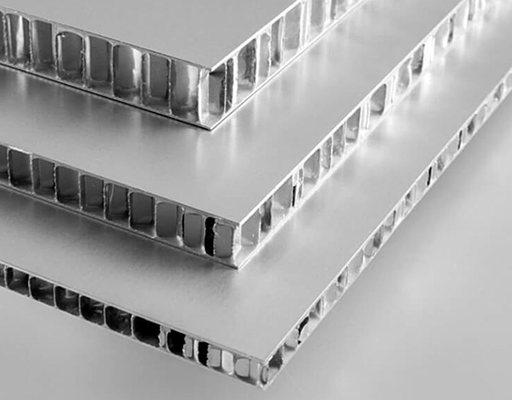

Thermal Insulating Aluminum Honeycomb Panel 3003 Core Soundproof Energy Saving A2 Fireproof Facade Panel 7-50mm
| Place of Origin | Henan, China |
|---|---|
| Brand Name | Yongsheng |
| Certification | ISO 9001:2015, CE, SGS |
| Model Number | AH-TI3003 |
| Minimum Order Quantity | 200 Square Meters |
| Price | USD 18-45 / Square Meter |
| Packaging Details | PE film and foam corner protectors, export-standard wooden pallets or plywood crates with steel strapping |
| Delivery Time | 7-15 days after deposit |
| Payment Terms | T/T,L/C,D/P |
| Supply Ability | 200000 Square Meters per Month |
Product Details
| Core Material | 3003 Aluminum Hexagonal Honeycomb Core | Panel Thickness | 7 - 50 Mm, Custom Thickness Available |
|---|---|---|---|
| Skin Thickness | 0.3 - 1.0 Mm | Standard Size | 1220 X 2440 Mm, 1500 X 3200 Mm, Cut To Size |
| Cell Size | 4 X 4 Mm / 6 X 6 Mm / 10 X 10 Mm | Core Density | 60 - 130 Kg/m3 |
| Thermal Conductivity | 0.6 - 1.0 W/(m.K) | Sound Reduction Index (Rw) | 25 - 32 DB |
| Noise Reduction Coefficient | 0.55 - 0.75 | Fireproof Grade | A2 Non-combustible |
| Flatness Tolerance | +/- 0.5 Mm | Weight | 3.6 - 6.5 Kg/m2 |
| Surface Finish | PVDF / PE Coated, Anodized, Brushed, Wood Grain | Application | Facade, Curtain Wall, Ceiling, Partition, Door, Cleanroom, Transport, Marine |
| Certification | ISO 9001:2015, CE, SGS | MOQ | 200 Square Meters |
| Sample | Free Sample Available (freight Only) | Packing | Seaworthy Export Packing On Wooden Pallets |
| Highlight | Thermal insulating aluminum honeycomb panel,Soundproof energy saving facade panel,A2 fireproof honeycomb aluminum panel |
||
Product Description
Product Description
Our Thermal Insulating Aluminum Honeycomb Panel is built on a 3003 aluminum alloy hexagonal honeycomb core bonded between two aluminum skins with aerospace-grade adhesive. The sealed air cells inside the core form a natural thermal barrier, giving the panel low thermal conductivity, high acoustic damping and an outstanding strength-to-weight ratio with high flatness and A2 non-combustible fireproof performance, meeting ISO 9001:2015 and CE standards.
Engineered for energy-efficient building envelopes, the panel reduces heat transfer and cuts air-conditioning and heating loads while absorbing airborne noise from traffic, machinery and public areas. With a thermal conductivity of 0.6 - 1.0 W/(m·K), a sound reduction index up to 32 dB and a noise reduction coefficient up to 0.75, it is widely used for curtain wall facades, ceilings, partitions, door panels, cleanrooms, marine, transportation and aerospace interiors.
Produced in our Henan factory with full-process casting, rolling, bonding and finishing lines, every panel is available with a free test sample so buyers can verify core bonding, thermal performance, sound insulation and surface flatness before mass orders.
Features
- Product Name: Thermal Insulating Aluminum Honeycomb Panel
- Core Material: 3003 Aluminum Hexagonal Honeycomb Core
- Panel Thickness: 7 - 50 mm, custom thickness available
- Skin Thickness: 0.3 - 1.0 mm
- Standard Size: 1220 x 2440 mm, 1500 x 3200 mm, cut to size
- Cell Size: 4 x 4 mm / 6 x 6 mm / 10 x 10 mm
- Core Density: 60 - 130 kg/m³
- Thermal Conductivity: 0.6 - 1.0 W/(m·K), energy saving insulation
- Sound Reduction Index (Rw): 25 - 32 dB acoustic damping
- Noise Reduction Coefficient (NRC): 0.55 - 0.75
- Fireproof Grade: A2 Non-combustible
- Flatness Tolerance: ±0.5 mm
- Weight: only 3.6 - 6.5 kg/m², ultra lightweight
- Surface Finish: PVDF / PE coated, anodized, brushed, wood grain
- Corrosion Resistance: salt-spray tested aluminum skins
- Moisture Proof: sealed core resists humidity
- Easy Installation: lightweight panels simplify handling and fixing
- Certification: ISO 9001:2015, CE, SGS
- Extra Service: Free sample supply
Insulation Performance
| Performance Item | Value | Benefit |
|---|---|---|
| Thermal Conductivity | 0.6 - 1.0 W/(m·K) | Reduces heat transfer and lowers energy cost |
| Thermal Insulation | Sealed air-cell honeycomb core | Stable indoor temperature, energy saving |
| Sound Reduction (Rw) | 25 - 32 dB | Blocks airborne noise between spaces |
| Noise Reduction (NRC) | 0.55 - 0.75 | Absorbs echo for quieter interiors |
| Fireproof Grade | A2 Non-combustible | Fire safety for building envelopes |
Technical Parameters
| Parameter | Specification |
|---|---|
| Core Material | 3003 Aluminum Alloy Hexagonal Honeycomb |
| Panel Thickness | 7 - 50 mm (custom thickness available) |
| Skin Thickness | 0.3 - 1.0 mm |
| Standard Size | 1220 x 2440 mm / 1500 x 3200 mm, cut to size |
| Cell Size | 4 x 4 mm / 6 x 6 mm / 10 x 10 mm |
| Core Density | 60 - 130 kg/m³ |
| Thermal Conductivity | 0.6 - 1.0 W/(m·K) |
| Sound Reduction Index (Rw) | 25 - 32 dB |
| Noise Reduction Coefficient | 0.55 - 0.75 |
| Fireproof Grade | A2 Non-combustible |
| Flatness Tolerance | ±0.5 mm |
| Weight | 3.6 - 6.5 kg/m² |
| Surface Finish | PVDF / PE Coated, Anodized, Brushed, Wood Grain |
| Corrosion Resistance | Salt-spray tested aluminum skins |
| Standard | ISO 9001:2015, CE, SGS |
Quality Advantages
- Energy saving thermal insulation: the sealed honeycomb air cells create a natural thermal barrier that cuts cooling and heating loads.
- Superior acoustic damping: Rw up to 32 dB and NRC up to 0.75 block noise and absorb echo for quieter interiors.
- Ultra lightweight yet rigid: high strength-to-weight ratio reduces structural load and installation cost.
- A2 non-combustible fire safety: fireproof aluminum core meets building safety compliance.
- High flatness and stability: flatness tolerance within ±0.5 mm resists deformation and vibration.
- Factory direct control: full-process production from casting and rolling to bonding and finishing ensures consistent quality and cost advantage.
Applications
Yongsheng Thermal Insulating Aluminum Honeycomb Panels are engineered for energy-efficient architectural, transport and industrial projects.
- Curtain Wall and Facade: insulated, fireproof panels for energy-efficient building envelopes.
- Ceiling System: lightweight acoustic panels reduce load and control echo.
- Interior Wall and Partition: soundproof, thermally insulating panels for offices and hotels.
- Door Panel and Cleanroom: flat, dust-free and fireproof sandwich skins.
- Transportation and Marine: lightweight insulated panels for buses, trains and ship cabins.
- Home Appliance and Display: stable, decorative panels for housings and exhibition booths.
We supply thermal insulating aluminum honeycomb panels in custom sizes, shipped from major seaports to buyers worldwide.
Customization
Yongsheng supplies customized thermal insulating aluminum honeycomb panels with panel thickness from 7mm to 50mm, skin thickness from 0.3mm to 1.0mm, and custom lengths up to 3200mm and widths up to 1500mm, cut to your exact specification.
Custom core alloy, cell size, panel thickness, thermal performance, sound insulation grade, surface finish, color, logo and packaging are all available. Our engineers help customers select the right core density and panel thickness to meet their target U-value, acoustic rating and fireproof requirement.
All customized panels can be shipped from major Chinese seaports with a stable 200000 square meters monthly supply capacity.
Support and Services
As an aluminum processing factory with full-process production capabilities, we maintain comprehensive control over casting, rolling, bonding and finishing technology. Whether it is energy-saving insulated panels for facade projects or acoustic panels for transport interiors, we deliver stable and reliable OEM/ODM solutions.
We provide full professional technical support for every buyer. Complete material certificates, bonding test reports and installation guides are provided for factory audit and customs clearance.
Our technical team offers targeted guidance on core density, panel thickness and surface finish selection. Custom cut-to-size and CNC machining services can be produced as requested.
Strict full-batch quality control guarantees stable core bonding strength, thermal performance and surface flatness. Our after-sales team delivers fast problem solving and long-term technical consultation.
Packing and Shipping
Each panel is protected with PE film and foam corner protectors, then packed onto export-standard wooden pallets or plywood crates with steel strapping.
Reinforced seaworthy packaging prevents surface scratches, delamination and moisture ingress during long ocean transportation. Clear shipping marks and full cargo documents are attached for easy customs clearance.
We cooperate with trusted logistics providers and support sea shipment to global destinations with a reliable 7-15 day lead time.
FAQ
Q1: What makes this panel thermally insulating?
The sealed hexagonal honeycomb air cells form a natural thermal barrier with a low thermal conductivity of 0.6 - 1.0 W/(m·K), reducing heat transfer and energy cost.
Q2: What is the sound insulation performance?
The panel delivers a sound reduction index of 25 - 32 dB and a noise reduction coefficient of 0.55 - 0.75, blocking airborne noise and absorbing echo.
Q3: What is the fireproof grade?
Our aluminum honeycomb panel is A2 non-combustible, meeting building fire safety requirements for facades and interiors.
Q4: What sizes and thicknesses can you customize?
Panel thickness from 7mm to 50mm, lengths up to 3200mm and widths up to 1500mm, cut to size to reduce waste.
Q5: How heavy is the panel?
Depending on thickness, the panel weighs only 3.6 - 6.5 kg/m², giving an excellent strength-to-weight ratio for facade and transport use.
Q6: Can you match a custom color or surface finish?
Yes. We offer PVDF, PE, anodized, brushed and wood grain finishes, with RAL, Pantone or physical sample color matching.
Q7: Is it suitable for coastal or high-humidity areas?
Yes. The salt-spray tested aluminum skins and sealed core resist corrosion and humidity for long service life.
Q8: Can I get a free sample?
Yes, we provide free samples for buyers to verify core bonding, thermal performance, sound insulation and flatness; the customer only pays the freight.
Q9: What certifications do you hold?
ISO 9001:2015, CE and SGS, with strict QC for every production batch.
Q10: What payment terms and delivery time do you offer?
We accept T/T, L/C and D/P, with delivery within 7-15 days after deposit.
