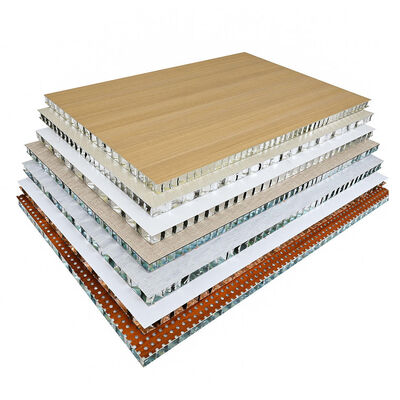

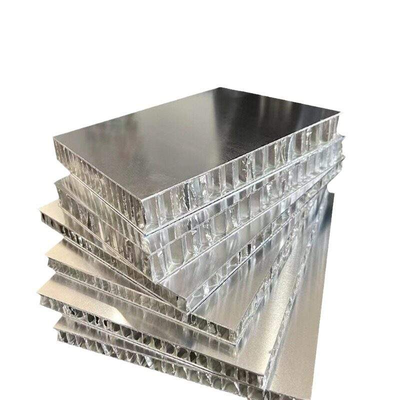

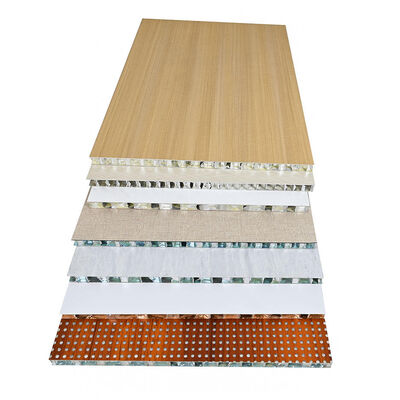

Aluminum Honeycomb Ceiling Panel 3003 Core 7-50mm Thickness Lightweight Fireproof Wall Panel 1220x2440mm
| Place of Origin | Henan, China |
|---|---|
| Brand Name | Yongsheng |
| Certification | ISO 9001:2015, CE, SGS |
| Model Number | AHC-3003 Honeycomb Panel |
| Minimum Order Quantity | 200 Square Meters |
| Price | USD 15-38 / Square Meter |
| Packaging Details | Export-standard wooden pallet with PE film, foam corner protectors and kraft paper |
| Delivery Time | 7-15 days after deposit |
| Payment Terms | T/T,L/C,D/P |
| Supply Ability | 200000 Square Meter per Month |
Product Details
| Core Material | Aluminum Alloy Honeycomb Core | Thickness | 7mm - 50mm |
|---|---|---|---|
| Length | 2440mm - 3200mm | Width | 1220mm - 1500mm |
| Color | Customized Color | Material | Customizable (1000 Series / 3000 Series / 5000 Series Aluminum Alloy) |
| Feature | Fireproof, Corrosion Resistance, Moisture Proof, Easy Installation | Applications | Building Facades, Interior Decoration, Transportation, Aerospace, Ceilings |
| Skin Thickness | 0.3 - 1.0 Mm | Cell Size | 4 X 4 Mm / 6 X 6 Mm |
| Core Density | 80 - 130 Kg/m3 | Flatness Tolerance | ±0.5 Mm |
| Surface Finish | PVDF / PE Coated, Anodized, Brushed | OEM / ODM | Custom Size, Color, Logo Available |
| Sample | Free Sample | ||
| Highlight | 3003 Core Aluminum Honeycomb Ceiling Panel,Lightweight Aluminum Honeycomb Ceiling Panel,Fireproof Aluminum Honeycomb Ceiling Panel |
||
Product Description
Product Description

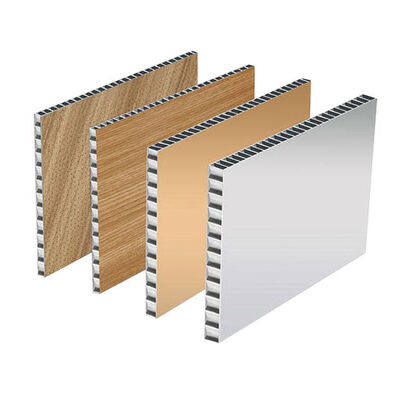

Our Aluminum Honeycomb Ceiling Panel features an aluminum alloy hexagonal honeycomb core bonded between two aluminum skins with aerospace-grade adhesive. This sandwich structure delivers an outstanding strength-to-weight ratio, high flatness and A2 fireproof performance, meeting ISO 9001:2015 and CE standards.
As lightweight aluminum honeycomb wall panels, the product combines ultra-light weight with exceptional rigidity, resisting deformation, vibration and impact. It is widely used for ceiling systems, interior walls, building facades, partitions, door panels, marine, transportation and aerospace applications.
We deliver all honeycomb panels via sea freight with a reliable 7-15 day lead time. Free test samples are available for buyers to verify core bonding and surface flatness before mass orders.
Features
- Product Name: Aluminum Honeycomb Ceiling Panel / Wall Panel
- Core Material: Aluminum Alloy Honeycomb Core
- Panel Thickness: 7 - 50 mm
- Length: 2440 - 3200 mm, Width: 1220 - 1500 mm
- Cell Size: 4 x 4 mm / 6 x 6 mm
- Core Density: 80 - 130 kg/m³
- Flatness Tolerance: ±0.5 mm
- Fireproof Grade: A2 Non-combustible
- Corrosion Resistance: salt-spray tested aluminum skins
- Moisture Proof: sealed core resists humidity
- Easy Installation: ultra-light weight simplifies handling and fixing
- Surface Finish: PVDF / PE coated, anodized, brushed
- Certification: ISO 9001:2015, CE, SGS
- Extra Service: Free sample supply
Technical Parameters
| Parameter | Specification |
|---|---|
| Core Material | Aluminum Alloy Honeycomb |
| Panel Thickness | 7 - 50 mm |
| Length | 2440 - 3200 mm |
| Width | 1220 - 1500 mm |
| Cell Size | 4 x 4 mm / 6 x 6 mm |
| Core Density | 80 - 130 kg/m³ |
| Flatness Tolerance | ±0.5 mm |
| Fireproof Grade | A2 Non-combustible |
| Surface Finish | PVDF / PE Coated, Anodized, Brushed |
| Sample | Free sample available |
| Certification | ISO 9001:2015, CE, SGS |
Applications
Yongsheng Aluminum Honeycomb Panels are lightweight, flat and fireproof sandwich panels suitable for both interior and exterior architectural projects.
- Ceiling System: ultra-light panels reduce structural load and enable fast, sag-free installation.
- Interior Wall & Partition: rigid sandwich core provides excellent sound insulation and impact resistance.
- Curtain Wall & Facade: high flatness and A2 fireproof performance ensure safe, long-lasting building envelopes.
- Marine & Transportation: corrosion-resistant aluminum structure suits ship cabins, buses and trains.
- Aerospace & Aviation: high strength-to-weight ratio suits aircraft interior panels and cargo liners.
- Furniture & Display: smooth surface supports countertops, display stands and exhibition booths.
We supply aluminum honeycomb ceiling and wall panels in custom sizes, shipped from major seaports to buyers worldwide.
Customization
Yongsheng supplies customized aluminum honeycomb panels with panel thickness from 7mm to 50mm, lengths from 2440mm to 3200mm and widths from 1220mm to 1500mm. All production follows ISO 9001:2015 and CE specifications.
Custom core alloy, cell size, surface finish, color, logo and packaging are available. This honeycomb panel combines light weight and high rigidity, matching ceiling, wall and interior project demands.
All customized panels can be shipped from major Chinese seaports with a stable 200000 square meters monthly supply capacity.
Support and Services
As an aluminum processing factory with full-process production capabilities, we maintain comprehensive control over raw material quality and production technology. Whether it is ultra-large custom panels for curtain wall projects or special-shaped parts for transportation interiors, we deliver stable and reliable OEM/ODM solutions for our customers.
We provide full professional technical support for every buyer. Complete material certificates, bonding test reports and application guides are provided for factory audit and customs clearance.
Our technical team offers targeted guidance on core density, panel thickness and surface finish selection. Custom cut-to-size and CNC machining services can be produced as requested.
Strict full-batch quality control guarantees stable core bonding strength and surface flatness. Our after-sales team delivers fast problem solving and long-term technical consultation.
Packing and Shipping
Each panel is protected with PE film and foam corner protectors, then packed onto export-standard wooden pallets or plywood crates.
Reinforced packaging prevents surface scratches and collision damage during long ocean transportation. Clear shipping marks and full cargo documents are attached for easy customs clearance.
We cooperate with trusted logistics providers and support sea shipment to global destinations with a 7-15 day lead time.
FAQ
Q1: What is the MOQ?
200 square meters per order. Trial orders with smaller quantity are negotiable.
Q2: Can I get a sample?
Yes, free sample is available for evaluation; customer only pays the freight.
Q3: What is the delivery time?
7-15 days after deposit for standard sizes; custom specifications may take a little longer.
Q4: Do you support OEM / ODM?
Yes, we customize panel size, thickness, surface finish, color, logo and packaging.
Q5: What are your factory advantages?
Over 10 years of aluminum panel manufacturing experience, 200000 square meters monthly capacity and 24-hour production lines ensure stable supply and on-time delivery.
Q6: What certifications do you hold?
ISO 9001:2015, CE and SGS, with strict QC for every production batch.
Q7: How do you guarantee quality?
We run full-process inspection with advanced testing equipment, controlling core bonding strength and flatness tolerance within ±0.5 mm.
Q8: What payment terms do you accept?
L/C, D/A, D/P and T/T.
