3003 5052 5083 6061 Anti-Slip Diamond Pattern Aluminum Tread Plate Aluminium Metal
| Place of Origin | Henan Province, China |
|---|---|
| Brand Name | YONGSHENG |
| Certification | ISO, RoHS,EN 485,ASTM |
| Model Number | 3000,5000,6000 series |
| Minimum Order Quantity | 1 ton |
| Price | 2950-3150 USD/Ton |
| Packaging Details | Standard Sea-worthy Packing |
| Delivery Time | 7-25 days after order confirmation |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 5000 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Keyword | Non-Slip Aluminum Plate | Temper | O-H112 |
|---|---|---|---|
| Type | Plate/Coil | Thickness | 1.0mm–6.0mm |
| Width | 100mm-1600mm | Surface Treatment | Classic, 1-5 Bars, Checker, Altered, Diamond, Stucco, Etc. |
| Application | Transportation, Construction,Flooring,Machinery,etc. | Packing | Export Seaworthy Wooden Pallet |
| Port | QingDao,ShangHai,TianJin | Sample | Free |
| Highlight | anti-slip diamond pattern aluminum plate,5052 aluminum tread plate,6061 checkered aluminum metal plate |
||
Product Description
3003 5052 5083 6061 Anti-Slip Diamond Pattern Aluminum Tread Plate Aluminium
Product Description
Aluminum Checkered Plate/Aluminum Tread Plate is named for the raised stripes or diamond patterns on its surface. These patterns not only enhance the aesthetic appeal, but more importantly, they offer excellent anti-slip properties, high strength and corrosion resistance, thereby improving rigidity and resistance to deformation.
Surface treatment
①Mill Finish: Retains the silver-white natural color of the aluminum material, suitable for industrial settings (such as the 6061-T6 platform).
②Anodized: Enhances wear resistance and color (for use in building 6061-T6 facades).
③Coated: PVDF coating offers a lifespan of over 20 years in terms of weather resistance (for outdoor construction with 5052 alloy).
Pattern types
① 5-bar tread pattern
Characteristics: Parallel raised stripes, anti-slip coefficient ≥ 0.6 (dry state).
Application: Industrial platforms, floor of transportation equipment (such as the bottom plate of 5083 alloy truck) .
② Diamond pattern
Characteristics: Crossed raised points, highly decorative, anti-slip coefficient ≥ 0.55.
Application: Building curtain walls, light-load areas (such as 3003 alloy decorative panels).
Product Specifications
Common thickness: 1.0mm - 6.0mm (base material thickness, excluding the height of the pattern).
International standards
ASTM B209 (American material standard)
EN 485 (European aluminum sheet specification)
ISO 7599 (Anodic oxidation standard)
Different alloy series meet diverse application requirements. Here is an introduction to the commonly used alloys of Aluminum Checkered Plate:
|
Alloy Series |
Characteristics |
Typical Grade |
Yield Strength |
Application |
|---|---|---|---|---|
|
5xxx series |
Optimal corrosion resistance, moderate strength |
5052-H32 |
≥210 MPa |
Ship deck, chemical environment platform |
|
High strength, resistant to seawater corrosion |
5083-H116 |
≥270 MPa |
Ocean engineering, heavy truck floor |
|
|
6xxx series |
High strength, heat-treatable for strengthening |
6061-T6 |
≥310 MPa |
Structural platform, mechanical equipment guard cover |
|
3xxx series |
Good formability, low cost |
3003-H14 |
≥150 MPa |
Lightweight anti-slip floor, decorative use |
Product Usage
The strip patterned aluminum sheet has an extremely wide range of applications, covering almost all industrial and commercial fields that require anti-slip, lightweight, and corrosion resistance.
1. Transportation Field
This is the largest and most common application market for patterned aluminum sheets.
- Trucks, trailers and cargo box floors: used for the bottom and side panels of container trucks, refrigerated trucks, and flatbed trailers. The anti-slip pattern ensures the safety of personnel and goods during movement, and the lightweight property of aluminum directly reduces fuel consumption and increases payload capacity.
- Bus, train and subway car floors: resistant to high-intensity foot traffic, anti-slip and easy to clean.
- Ship decks and gangways: excellent resistance to marine climate corrosion and anti-slip properties, making it an ideal choice for ship applications.
- Aircraft gangways and airport passageways: lightweight, durable, easy to move and operate.
2. Construction & Architecture Field
- Industrial platforms, walkways and stair treads: Provide safe walking surfaces in factories, warehouses, oil drilling platforms, power plants, etc.
- Building facades and interior decorative panels: With their unique textures, they can create a strong modern industrial visual effect, often used for the facades or interior decorations of commercial buildings, subway stations, and art galleries.
- Automatic escalator skirt panels and anti-slip edges: Standard configuration, safe and aesthetically pleasing.
- Refrigerated warehouse floors: Resistant to low temperatures, stable in refrigerated environments.
3. Machinery & Electronics
- Equipment protective covers and cabinet lids: The patterns enhance the strength of the outer shell, preventing it from deforming due to impact, and making it easy to open.
- Anti-slip platform bases for robots
- Electronic equipment shells: Such as large server cabinets and the shells of audio equipment, which also have the functions of heat dissipation, anti-slip and structural support.
- Industrial platforms and stair treads are among the most common applications. It offers anti-slip, wear-resistant, and corrosion-resistant qualities, making it a popular choice for anti-slip surfaces in industrial facilities, commercial buildings, decks, and stairs.
- Furthermore, aluminum diamond plates are utilized on equipment like trucks, trailers, and racks to provide extra strong support and a safe tread surface.
4. Other Commercial Uses
- Kitchen anti-slip flooring and backs of workbenches: Commonly used in restaurants and hotel kitchens.
- Furniture design: Used for making tables, shelves, bar counters, etc. with an industrial style.
- Display cabinets and billboards

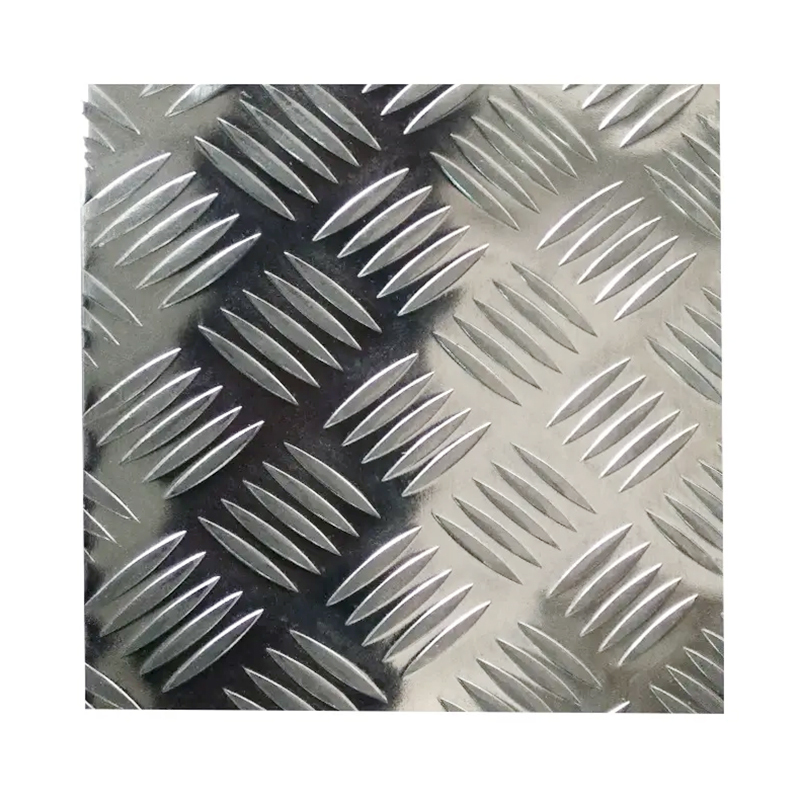

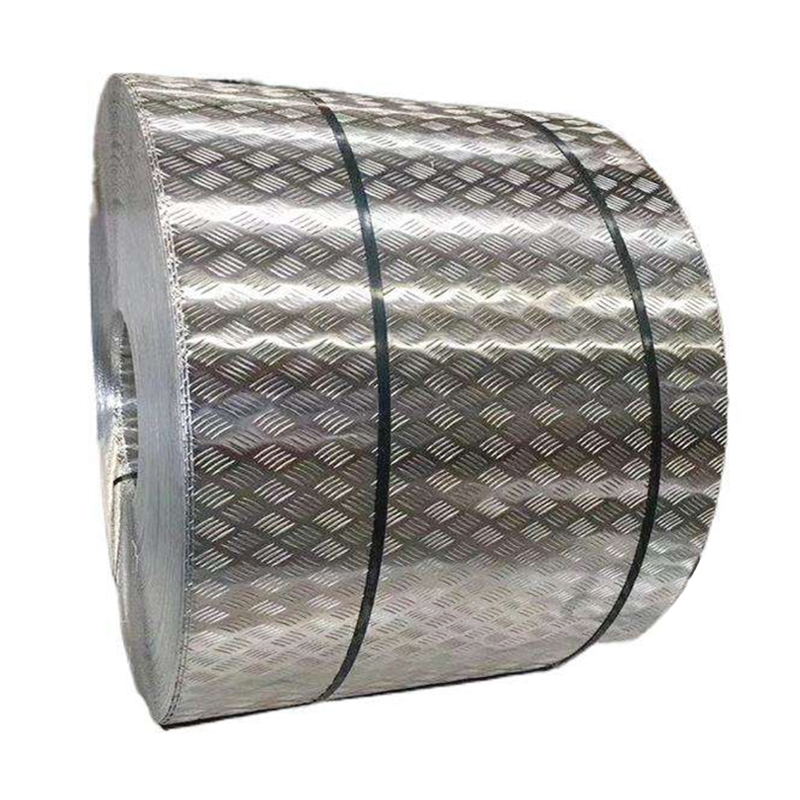

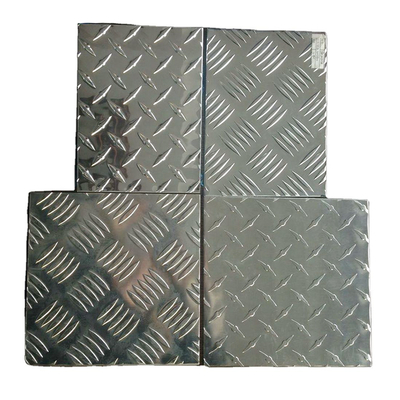

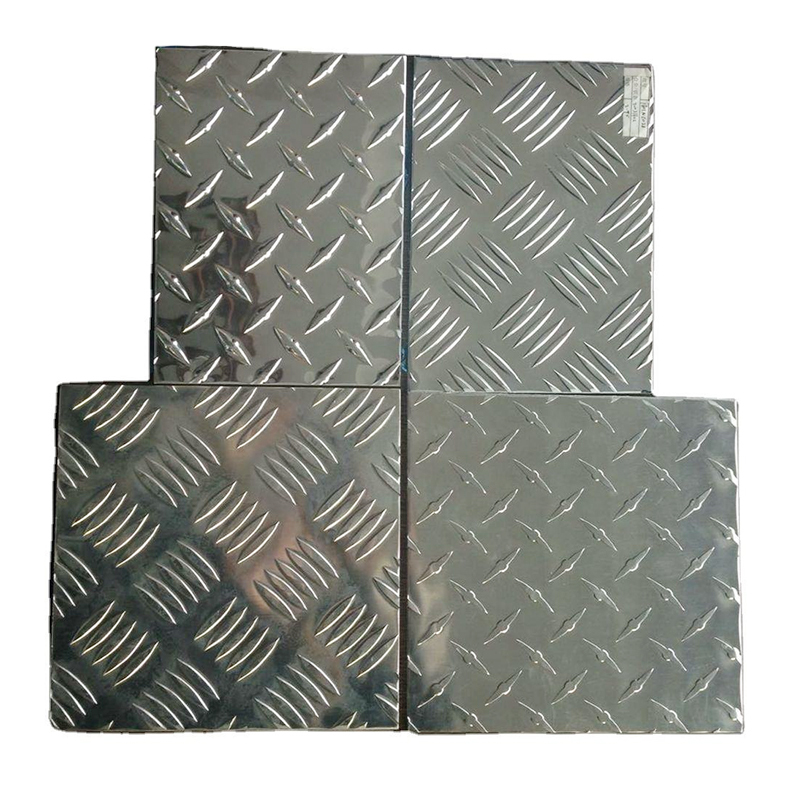

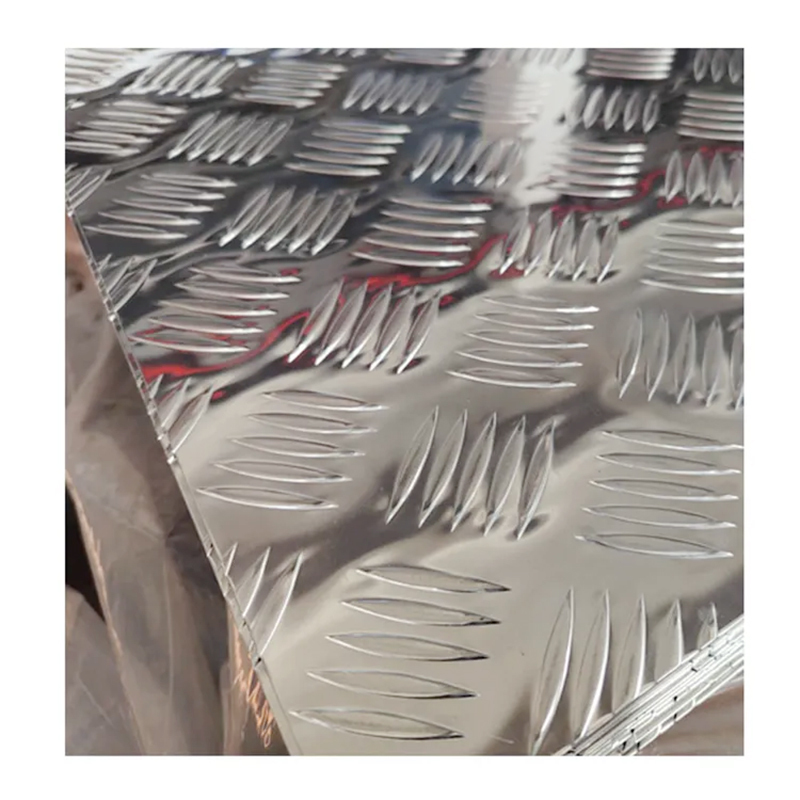

Product Images
