Hydrophilic foil 8011 blue aluminum foil for air conditioner

  • Hydrophilic foil 8011 blue aluminum foil for air conditioner
  • Hydrophilic foil 8011 blue aluminum foil for air conditioner
  • Hydrophilic foil 8011 blue aluminum foil for air conditioner
  • Hydrophilic foil 8011 blue aluminum foil for air conditioner
  • Hydrophilic foil 8011 blue aluminum foil for air conditioner
Place of Origin Henan Province, China
Brand Name Henan Yongsheng
Certification ISO, RoHS
Model Number Hydrophilic Aluminum Foil
Minimum Order Quantity 1 Ton
Packaging Details Wooden package
Delivery Time 7-25 days after order confirmation
Payment Terms L/C, D/A, D/P, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Hydrophilic Aluminum Foil Alloy/Grade 8011
Temper O-H112 Thickness 0.007-0.06mm
Length Customer Requirement Width 120- 1500 Mm (tolerance:± 1.0mm)
Color Blue Port ShangHai, TianJin, QingDao
Highlight

hydrophilic blue aluminum foil

,

8011 aluminum foil roll

,

air conditioner aluminum foil
Leave a Message
Product Description
Hydrophilic Foil 8011 Blue Aluminum Foil for Air Conditioner
Product Specifications
Attribute Value
Product Name Hydrophilic Aluminum Foil
Alloy/Grade 8011
Temper O-H112
Thickness 0.007-0.06mm
Length Customer Requirement
Width 120-1500 mm (tolerance:±1.0mm)
Color Blue
Port ShangHai, TianJin, QingDao
Product Overview

Hydrophilic Aluminum Foil is a special surface-treated aluminum foil, primarily used in heat exchangers (evaporators and condensers) of air conditioners and refrigeration equipment. Its core characteristic is hydrophilicity, enabling water (especially condensed water) to spread quickly on the surface to form a water film instead of gathering into water droplets - a crucial feature for improving heat exchange efficiency.

Core Characteristics
  • Hydrophilicity: Surface treatment with hydrophilic coatings and chemical processes creates hydrophilic groups that promote rapid water spreading into thin films rather than droplets.
  • Corrosion Resistance: Protective coatings shield the aluminum substrate from moisture and corrosive elements, extending heat exchanger lifespan.
  • Antibacterial Properties: Advanced formulations include antibacterial agents to inhibit microbial growth, improving air quality and reducing odors.
Key Advantages
  • Enhances heat exchange efficiency by reducing wind resistance
  • Maintains optimal dry fin surface area for maximum thermal transfer
  • Reduces energy consumption by improving system efficiency
  • Improves dehumidification capacity through rapid water removal
  • Minimizes operational noise from water droplet accumulation
  • Extends equipment service life through corrosion protection
  • Enhances air quality with antibacterial properties
Applications
  • Household Air Conditioners: Indoor unit evaporators and outdoor unit condensers
  • Commercial HVAC Systems: Air-cooled modular units, multi-split systems, water-cooled units
  • Refrigeration Equipment: Refrigerators, freezers, dehumidifiers, chillers
  • Automotive HVAC: Evaporators and condensers in vehicle air conditioning systems
Product Images

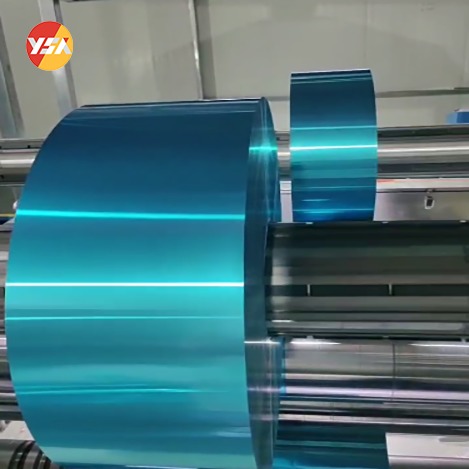

Hydrophilic foil 8011 blue aluminum foil for air conditioner 0

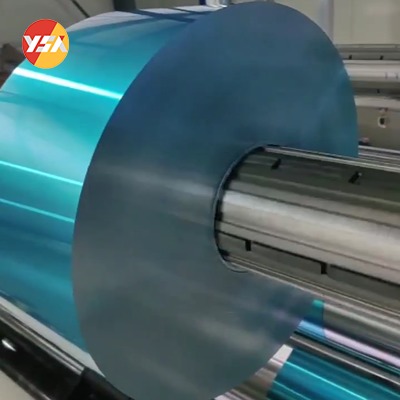

Hydrophilic foil 8011 blue aluminum foil for air conditioner 1

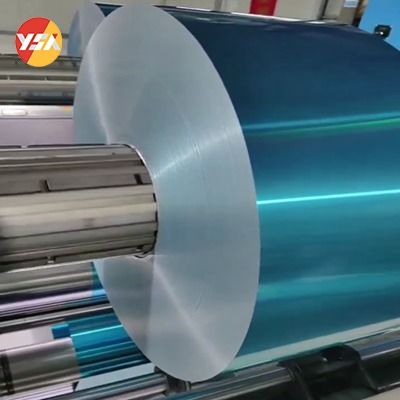

Hydrophilic foil 8011 blue aluminum foil for air conditioner 2

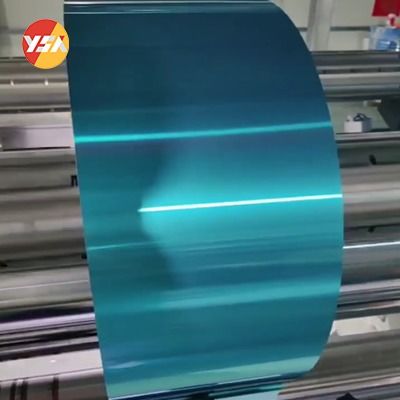

Hydrophilic foil 8011 blue aluminum foil for air conditioner 3
