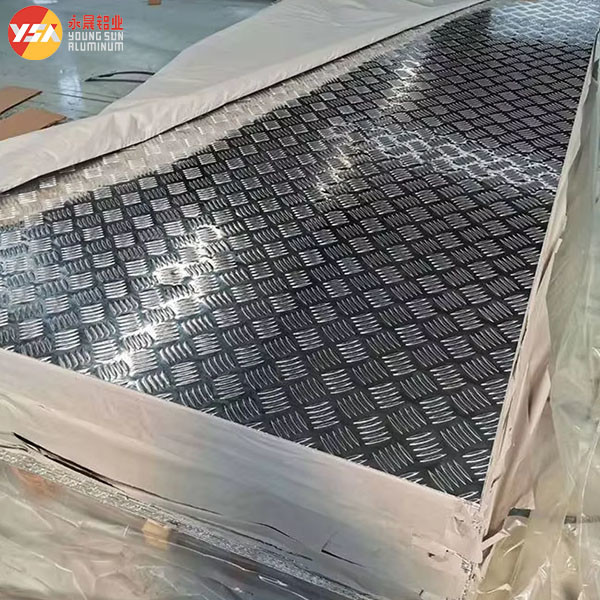

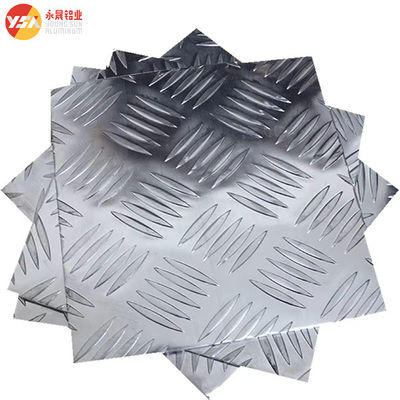

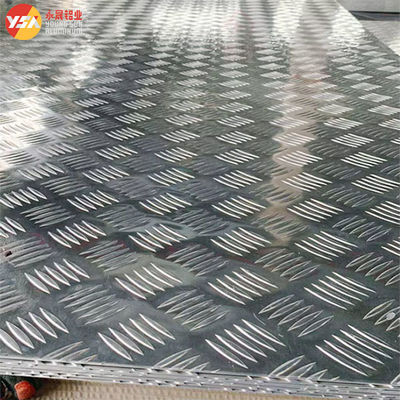

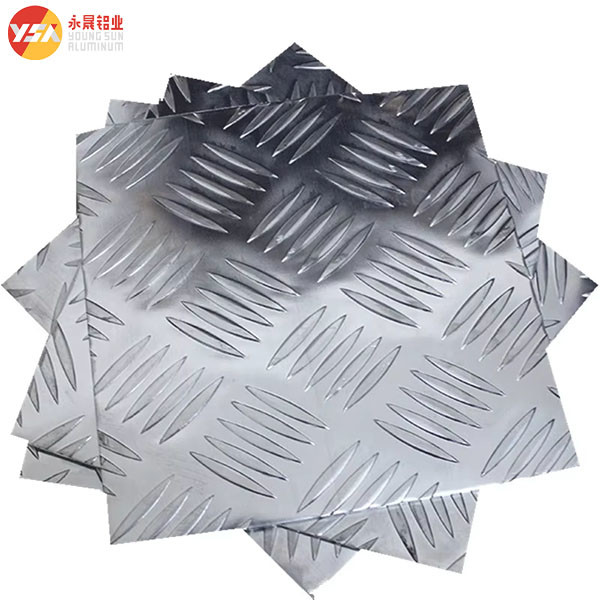

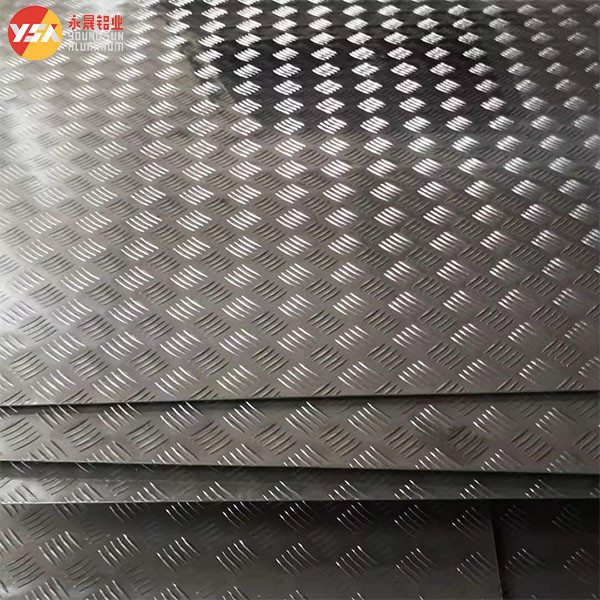

5754 5083 5052 Aluminum Chequered Sheet 3003 3105 Aluminum Tread Plates
| Place of Origin | Henan Province , China |
|---|---|
| Brand Name | Yongsheng |
| Certification | SGS, ISO, RoHS, etc. |
| Model Number | Aluminum Checkered Plate |
| Minimum Order Quantity | 2 Tons |
| Price | 2800-3300 USD/Ton |
| Packaging Details | Standard Seaworthy Wooden Pallet Packing |
| Delivery Time | 7-20 workdays |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 5000 Tons Per Month |
Product Details
| Material | Aluminum Chequered Sheet | Alloy | 1000, 3000, 5000 Series |
|---|---|---|---|
| Thickness | 0.13mm-6.5mm | Width | 100mm-1600mm |
| Length | As Per Your Requirements | Surface | Classic, 1-5 Bars, Checker, Altered, Diamond, Stucco, Etc. |
| Application | Construction, Flooring, Refrigerator, Kitchen Cabinet,etc. | Sample | Free |
| Highlight | 3105 Aluminum Chequered Sheet,3003 Aluminum Chequered Sheet,5052 Aluminum Chequered Sheet |
||
Product Description
5754 5083 5052 Aluminum Chequered Sheet 3003 3105 Aluminum Tread Plates
Our 5754, 5083, 5052, 3003, and 3105 Aluminum Chequered Sheets (Tread Plates) are engineered for exceptional strength, corrosion resistance, and slip-resistant performance. Featuring diamond or lentil pattern embossing, these sheets combine functionality with an aesthetically appealing finish, making them ideal for flooring, marine structures, and transportation applications.
Product Specifications
| Product Name | Alloy | Temper | Thickness | Width |
|---|---|---|---|---|
| Anodized Aluminum Sheet | 1000 Series,3000 Series, 5000 Series, 6000 Series | O-H112, O / H14 / H32 / H24 | 0.2-10mm | 600-2000mm |
| Aluminum Tread Plate | 1000 Series,3000 Series, 5000 Series, 6000 Series | O-H112, O / H14 / H32 / H24 | 0.2-300mm | 1600mm Max |
| Aluminum Checker Plate | 1000 Series,3000 Series, 5000 Series, 6000 Series | O-H112, O / H14 / H32 / H24 | 1-7mm | 1600mm Max |
| Aluminum Diamond Plate | 1000 Series,3000 Series, 5000 Series, 6000 Series | O-H112, O / H14 / H32 / H24 | 1-8mm | 1600mm Max |
| Embossed Aluminum Plate | 1000 Series,3000 Series, 5000 Series, 6000 Series | O-H112, O / H14 / H32 / H24 | 0.2-200mm | 200-2200mm |
Key Features
- Durable Anti-Slip Surface - High-traction diamond/lentil patterns prevent accidents in wet or oily environments, ideal for ship decks, industrial walkways, and ramps
- Corrosion & Rust Resistant - Made from marine-grade 5083/5754 aluminum or medium-strength 5052/3003 alloys, these sheets withstand harsh environments including seawater, chemicals, and UV exposure
- Lightweight Yet Strong - Up to 30% lighter than steel but with impressive tensile strength (5083 alloy reaches 270-350 MPa)
- Easy to Fabricate - Can be cut, welded, bent, or drilled without cracking, perfect for custom installations
- Aesthetic & Decorative Use - Available in brushed, mill-finish, or anodized options for stylish architectural façades, elevators, and signage
- Temperature Resistant - Performs well in extreme temperatures from -50°C to 150°C (-58°F to 302°F)
Technical Parameters
| Product Name | Aluminum Sheet |
| Grade | 1000, 3000, 5000, 6000 Series |
| Temper | O-H112, T3-T8, etc |
| Application | Construction, Decoration, Industry, Cookware |
| Width | 50-2000mm, 2400mm, 6000mm, as required |
| Surface Treatment | Corrugated/Perforated/Embossed/Water Ripple |
| Brand Name | Yongsheng |
| Model Number | 1100/10504/3003/5052/5083/5086/6061/6082, etc |
| Tolerance | ±3% |
| Delivery Time | 15-21 days |
| Thickness | 0.2-300mm as required |
| Length | 1-12m |
| Certification | ISO9001:2015 |
| Color | Customized Color |
| Technique | Cold Rolled, Hot Rolled, Galvanized |
| Payment Terms | L/C T/T (30% Deposit) |
| Packing | Standard Sea-worthy Packaging |
