Diamond Aluminum Plate / Aluminum Checkered Patterned Plate / Embossed Perforated Aluminum Sheet
| Place of Origin | Henan Province , China |
|---|---|
| Brand Name | Yongsheng |
| Certification | SGS, ISO, RoHS, etc. |
| Model Number | Aluminum Checkered Plate |
| Minimum Order Quantity | 2 Tons |
| Price | 2800-3300 USD/Ton |
| Packaging Details | Standard Seaworthy Wooden Pallet Packing |
| Delivery Time | 7-20 workdays |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 5000 Tons Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Keyword | Diamond Aluminum Plate，Aluminum Checkered Patterned Plate，Embossed Perforated Aluminum Sheet | Brand | YongSheng Aluminum Industry Co., Ltd. |
|---|---|---|---|
| Alloy/Grade | 1000 Series,3000 Series, 5000 Series | Temper | O-H112, O / H14 / H32 / H24 |
| Thickness | 0.13mm-6.5mm | Width | 100mm-1600mm |
| Application | Construction , Flooring ,Refrigerator, Wine Cabinet, Kitchen Cabinet Etc. | Pattern | Classic , Altered, Diamond ,1-5 Bars ,checker, Etc. |
| Standards | ASTM-B209,EN573-1,GB/T3880.1-2006 | Sample | Free |
| Highlight | Embossed Perforated Aluminum Sheet,Diamond Aluminum Plate,Aluminum Checkered Patterned Plate |
||
Product Description

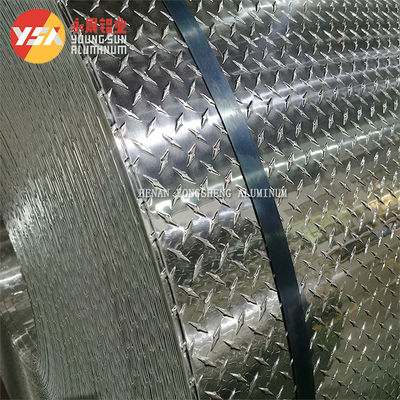

Diamond Aluminum Plate / Aluminum Checkered Patterned Plate / Embossed Perforated Aluminum Sheet
Product Overview
We manufacture and supply a comprehensive range of Anti-Slipping Aluminum Tread Sheets in various alloys to serve multiple industries. Our products are available in non-heat treatable alloys from the 1000, 3000, 5000, and 6000 series, all strengthened through cold working processes as indicated by "H" tempers.
Heat treatable alloys from the 2000, 6000, and 7000 series undergo significant strengthening when subjected to thermal treatment, with tempers denoted by "T". These alloys are also available in clad form for enhanced corrosion resistance. All aluminum alloys can be supplied in the annealed condition, commonly referred to as "O" temper.
Aluminum Tread Sheet/Checkered Sheet is extensively used in decorative applications, shipbuilding, and architectural projects. With excellent forming, drilling, and welding capabilities, these sheets are easy to fabricate while the raised patterns provide superior slip resistance.
Key Features
- Lightweight construction ideal for transport sector applications
- Easy disassembling and convenient assembly
- Optimal corner design for aluminum alloy steps
- Enhanced energy-saving performance
- Available in Diamond, Bar, and Pointer patterns
Technical Specifications
| Alloy | Temper | Thickness | Width | Embossed Depth | Length |
|---|---|---|---|---|---|
| 1050 | O/H12/H14/H22/H24 | 0.13mm-6.5mm | 10mm-1600mm | Customized | As Required |
| 1060 | O/H12/H14/H22/H24 | 0.13mm-6.6mm | 10mm-1600mm | Customized | As Required |
| 1100 | O/H12/H14/H22/H24 | 0.13mm-6.7mm | 10mm-1600mm | Customized | As Required |
| 3003 | O/H12/H14/H22/H24 | 0.13mm-6.8mm | 10mm-1600mm | Customized | As Required |
| 5052 | O/H12/H14/H22/H24/H32 | 0.13mm-6.9mm | 10mm-1600mm | Customized | As Required |
Product Gallery
Frequently Asked Questions
Q1:Are you a factory or a distributor?
Henan Yongsheng Aluminum Co., Ltd. is a large-scale aluminum sheet/strip/foil manufacturer under Henan Xintai Aluminum Co., Ltd. Founded in 1999, the company covers an area of 380,000 square meters and employs 2,100 staff. The company has received numerous awards including Top 100 Enterprises in Henan Province, the Gold Award of the Economic Benefit Cup, and Top 30 Enterprises in Zhengzhou City.
Q2:How to get a quote?
Please provide the required product specifications including thickness, width, length (in mm), total demand (tons), and application. For example: 6061 aluminum plate, 3*1220*2440mm, demand 30 tons/month, for mobile phone case.
Q3:What is the quotation process?
Initiate an inquiry → Submit demand information → Our business manager will provide a quotation within 5 minutes.
Q4:Can you provide samples?
Yes, we provide free samples, though customers are responsible for initial freight costs. Freight fees will be refunded upon order placement.
Q5:How long can I receive my goods?
Delivery time depends on the specific products ordered. Typically, it takes 7-35 days. We maintain complete production lines to ensure both product quality and efficient production speed for timely delivery.
Q6:Where is your factory located?
Our facility is located in Huiguo Town, Gongyi City, Henan Province, which represents China's largest aluminum industrial cluster. We welcome site visits and would be pleased to host you.
