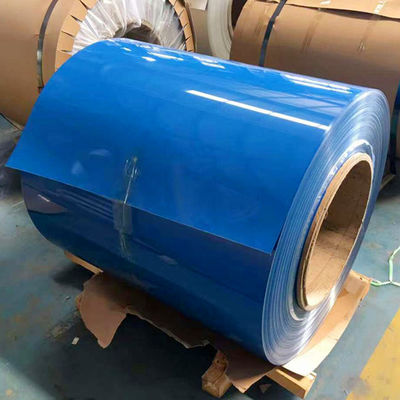

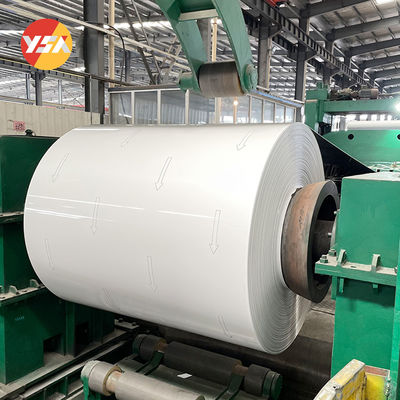

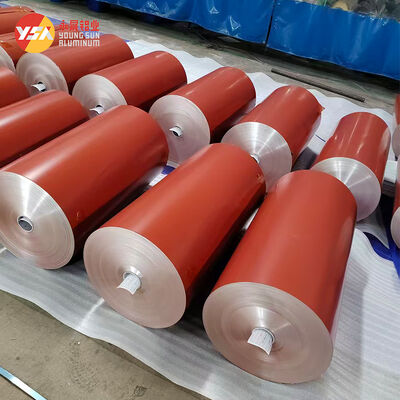

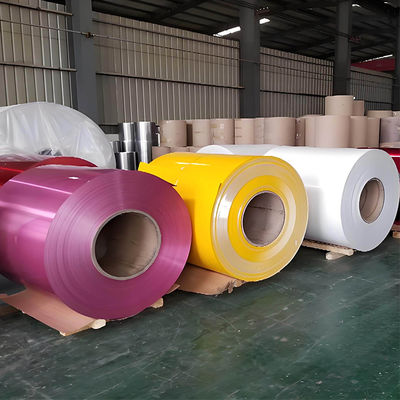

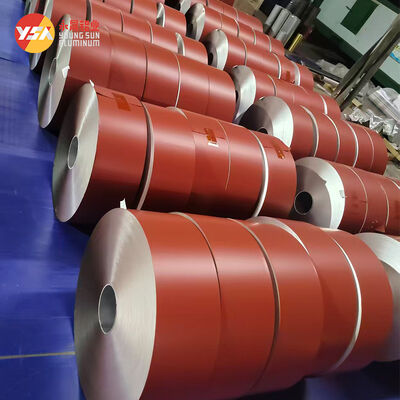

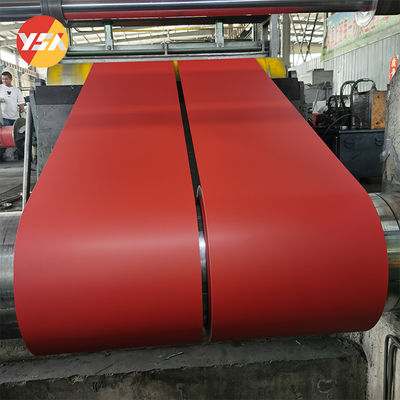

5052 PVDF Coated Aluminum Coil 0.3mm-3.0mm Custom Width Weather Resistant for Roofing Gutter Building Facade
| Place of Origin | Henan, China |
|---|---|
| Brand Name | Yongsheng |
| Certification | ISO 9001, SGS, ASTM B209, EN573-1 |
| Model Number | 5052-PVDF |
| Minimum Order Quantity | 5 Tons |
| Price | USD 3,500-4,000 / Ton |
| Packaging Details | Export-grade wooden pallet with waterproof kraft paper and PE film wrap, eye-to-sky or eye-to-wall coil orientation, fumigation-free |
| Delivery Time | 15-25 working days after order confirmation |
| Payment Terms | T/T,L/C at sight |
| Supply Ability | 5,000 Tons per Month |
Product Details
| Alloy | 5052 (Al-Mg 2.5%) | Temper | H32 / H34 / H36 |
|---|---|---|---|
| Thickness | 0.3mm - 3.0mm | Width | 100mm - 1600mm (Custom Slit Available) |
| Coating Thickness | 25-30μm Top Coat + 5-8μm Primer + 7-10μm Back Coat | Color Options | Full RAL Colors, Custom Color Matching |
| Gloss Level | 20-80 GU (Custom) | Outdoor Service Life | 20-25 Years (Per AAMA 2605) |
| Tensile Strength | 170-305 MPa | Yield Strength | ≥65 MPa |
| Elongation | ≥12% | Salt Spray Resistance | ≥4000 Hours (ASTM B117) |
| Applicable Standard | ASTM B209, EN573-1, EN1396, GB/T 17748 | Coil Inner Diameter | 405mm / 508mm |
| Maximum Coil Weight | 3-5 Tons Per Coil | ||
| Highlight | PVDF coated aluminum coil for roofing,weather resistant aluminum coil for gutters,custom width PVDF aluminum coil facade |
||
Product Description
5052 PVDF Coated Aluminum Coil — Superior Corrosion Resistance for Demanding Environments
Our 5052 alloy PVDF fluorocarbon coated aluminum coil is engineered for long-term outdoor performance in coastal, industrial, and high-humidity environments. The 5052 alloy (Al-Mg 2.5%) provides exceptional natural corrosion resistance, while the PVDF 70% Kynar 500 fluoropolymer coating delivers unmatched UV stability and chemical resistance for 20-25 years of service life.
Key Performance Advantages
🔬 Marine-Grade Corrosion Resistance
The 5052 alloy's magnesium content (2.2-2.8%) creates a dense passive oxide layer that actively resists pitting and crevice corrosion. Combined with PVDF fluorocarbon coating, this system withstands 4,000+ hours salt spray testing per ASTM B117, making it the preferred choice for coastal building projects, harbor facilities, and offshore platforms.
☀️ PVDF Fluorocarbon Coating Technology
The 70% PVDF resin system (Kynar 500 / Hylar 5000) forms a chemically inert barrier that resists UV degradation, acid rain, and industrial pollutants. The carbon-fluorine bond (C-F) in PVDF is one of the strongest chemical bonds known, providing superior color and gloss retention even after decades of direct sun exposure.
🌊 Weather Resistance vs. PE Coating Comparison
| Property | PVDF Coating | PE Coating |
|---|---|---|
| Salt Spray Resistance | 4,000+ hours | 1,000-1,500 hours |
| UV Resistance (QUV-B) | 4,000+ hours, ΔE < 5 | 1,000 hours, ΔE < 5 |
| Outdoor Service Life | 20-25 Years | 7-10 Years |
| Color Retention (10 Yr) | >90% Gloss Retention | 50-70% Gloss Retention |
| Chemical Resistance | Excellent (acid/alkali) | Moderate |
| Chalking Resistance | Rating 8-10 (10 yr) | Rating 4-6 (10 yr) |
🏗️ Ideal Applications
- Roofing Systems: Standing seam, corrugated, and tile-effect metal roofing for residential and commercial buildings
- Gutter & Fascia: Seamless and sectional gutter systems requiring decades of corrosion-free performance
- Curtain Wall & Facade Cladding: High-rise building exteriors demanding fire-rated, lightweight cladding materials
- Coastal Architecture: Beachfront hotels, marina structures, and harbor-side commercial buildings
- Industrial Facilities: Chemical plants, wastewater treatment facilities, and food processing environments
- Pipe Insulation Wrapping: Outdoor industrial pipe and duct insulation jacketing
📐 Custom Manufacturing Capabilities
- Thickness Range: 0.3mm to 3.0mm with tight tolerance control (±0.02mm)
- Width Customization: Slit from 100mm to 1600mm to match your roll-forming equipment
- Full RAL Color Matching: Any RAL, Pantone, or custom sample color accurately reproduced
- Gloss Levels: 20 GU (matte) to 80 GU (high gloss) with custom sheen options
- Film Protection: Optional PE protective film (60-90μm) for scratch-free handling during fabrication
✅ Quality Assurance & Certification
Every coil undergoes rigorous quality control: coating thickness measurement (eddy current), color spectrophotometer verification (ΔE < 1.5), T-bend flexibility test (≤2T no cracking), reverse impact test (9 J minimum), and MEK rub test (≥100 double rubs). Full mill test certificates (MTC) provided with each shipment. Compliant with ASTM B209, EN573-1, EN1396, and GB/T 17748 international standards.
📞 Contact us today for a customized quotation including your required alloy, thickness, width, color code, and monthly volume. Free A4 sample sheets available for evaluation. 15-25 day production lead time with reliable global shipping.
