3000 Series PE PVC Coated Aluminum Trim Coil Roll Painted Aluminum Sheet
| Place of Origin | Henan Province, China |
|---|---|
| Brand Name | YONGSHENG |
| Certification | SO,RoHS,MSDS,MTC |
| Model Number | 1000 3000 series |
| Minimum Order Quantity | 5 Ton |
| Price | 2950-3150 USD/Ton |
| Packaging Details | Standard Sea-worthy Packing |
| Delivery Time | 7-25 days after order confirmation |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 5000 Tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Alloy | 1050, 1060, 1100, 3003, 3004, 3105, Etc. | Temper | O-H112 |
|---|---|---|---|
| Thickness | 0.2-3mm | Width | 10mm-1600mm, Can Be Divided Into Strips |
| Tolerance | ±1% | Surface Treatment | PVDF Coating , PE Coating Etc. |
| Coating Thickness | PE≥18 μm, PVDF≥25 μm | Color | Silver,bronze,black,gold,blue,grey,bright,etc |
| Packing | Export Seaworthy Wooden Pallet | Sample | Free |
| Highlight | PE PVC coated aluminum trim coil,painted aluminum sheet roll,color coated aluminum coil |
||
Product Description
3000 Series PE PVC Coated Aluminum Trim Coil Roll Painted Aluminum Sheet
Product Specifications
|
Alloy |
Thickness |
Coating Thickness(micron) |
Width |
Temper |
|---|---|---|---|---|
|
A1050,A1060, A1070,A1100,A1235,A1245 |
0.15-3.0 |
PE>=14 PVDF>=25 |
20-2200 |
O,H12,H22,H14,H24,H16,H26,H18 |
|
3.0-12.0 |
20-2200 |
H111,H112 |
||
|
A3003,A3004,A3105 |
0.2-4.0 | 20-2200 | O,H12,H22,H14,H24,H16,H26,H18 | |
| 4.0-12.0 | 20-2200 | H111,H112 | ||
| A5052,A5083,A5754,A5005 | 0.2-4.0 | 20-2200 | O,H12,H22,H14,H24,H16,H26,H18 | |
| 4.0-12.0 | 20-2200 | H111,H112 | ||
| A6061,A6082,A6063 | 0.15-12 | 20-2200 | T6,T4,T651 | |
| A8011,1235 | 0.006-0.2 | 20-2200 | O,H14,H18,H24 | |
| Coating Finish | PVDF(Polyvinylidene Fluoride),PE(Polyester) | |||
| Coating Hardness(pencil resistance) | more than HB | |||
| Advantage | 1.High temperature resistant 2.Weathering resistant 3.Scrubbing resistant 4.Sound insulation 5.Acid or alkali proof 6. Fireproof 7.Light weight material is easy to construct and install |
|||
| ID | 405MM,505mm | |||
| Packing | Export wooden pallets, wooden case | |||
| Standards | ASTM-B209. EN573-1, GB/T3880.1-2006 | |||
PE coated aluminum sheets and PVC coated aluminum sheets both belong to surface-coated aluminum sheets. The core base material is aluminum alloy sheet. The core differences lie in the coating materials: PE has "weather resistance, processability, stability" as its core advantages, suitable for outdoor, complex environments and scenarios requiring processing; PVC has "decorativeness, low cost, scratch resistance" as its core advantages, suitable for short-term indoor decoration and scenarios with limited budgets.
PE Coated Aluminum Sheet
1.Key Advantages:
- Excellent weather resistance and corrosion resistance, suitable for outdoor and harsh environments;
- Good flexibility, strong processing adaptability, can meet complex shape requirements;
- High long-term stability, low maintenance cost;
- More environmentally friendly, suitable for both indoor and outdoor use.
2.Main disadvantages:
- Poor surface hardness, low scratch resistance, and prone to leaving marks;
- The decorative texture lacks立体感, and the visual effect is slightly inferior to PVC；
- The production cost is higher than that of PVC coated aluminum sheets (cost of PE coating + high temperature curing is high)
PVC coated aluminum coil
1.Key Advantages:
- High surface hardness and scratch resistance, making it unlikely to be damaged during daily use;
- Strong three-dimensional texture and vivid colors, enhancing the decorative effect;
- Lower production cost (the PVC film raw materials are inexpensive and the coating process is simple).
2.Main disadvantages:
- Poor weather resistance, prone to aging outdoors and short service life;
- Poor flexibility, limited processing capabilities, unable to create complex shapes;
- Poor heat resistance, prohibited for use in high-temperature environments;
- Non-environmentally friendly products may release harmful substances, need strict screening.
Purchase Suggestions
For outdoor long-term use (such as on exterior walls, outdoor advertisements): Preferentially choose PE coated aluminum sheets, and make sure the PE coating is of "weather-resistant" type; If it is for indoor decoration and the budget is limited (such as ordinary wardrobes, display cases): You can choose PVC coated aluminum sheets, but you need to request the supplier to provide "environmental testing report" (RoHS, GB 18585); If complex processing is required (such as bending, stamping): You must choose PE coated aluminum sheets; PVC coated aluminum sheets are prone to cracking; If it is in a high-temperature environment (such as kitchen, around heat sources): PVC coated aluminum sheets are strictly prohibited; PE coated aluminum sheets should be the priority choice.
Maintenance Suggestions
PE Coated Aluminum Sheet: Wipe with clean water or neutral cleaner on a daily basis. Avoid using hard-bristled brushes (to prevent scratches). For outdoor use, clean once every 1-2 years to extend the service life.
PVC Coated Aluminum Sheet: Avoid contact with high temperatures (such as hot water basins, ovens). When cleaning, use a dry cloth or weakly alkaline cleaner. Do not use strong solvents (such as gasoline). Outdoor use requires checking once every six months. If the coating cracks, replace it immediately.

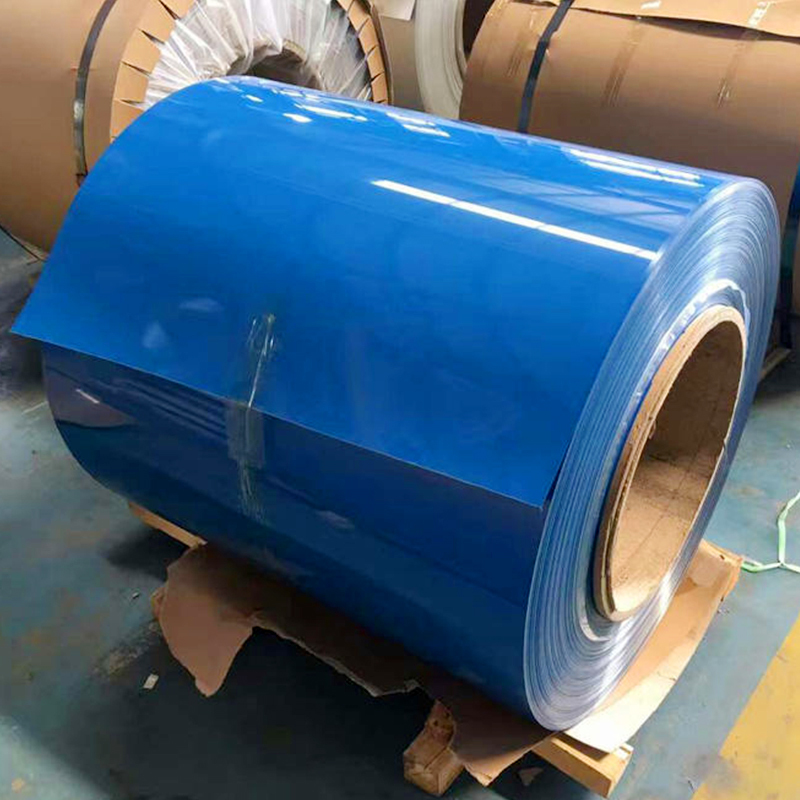

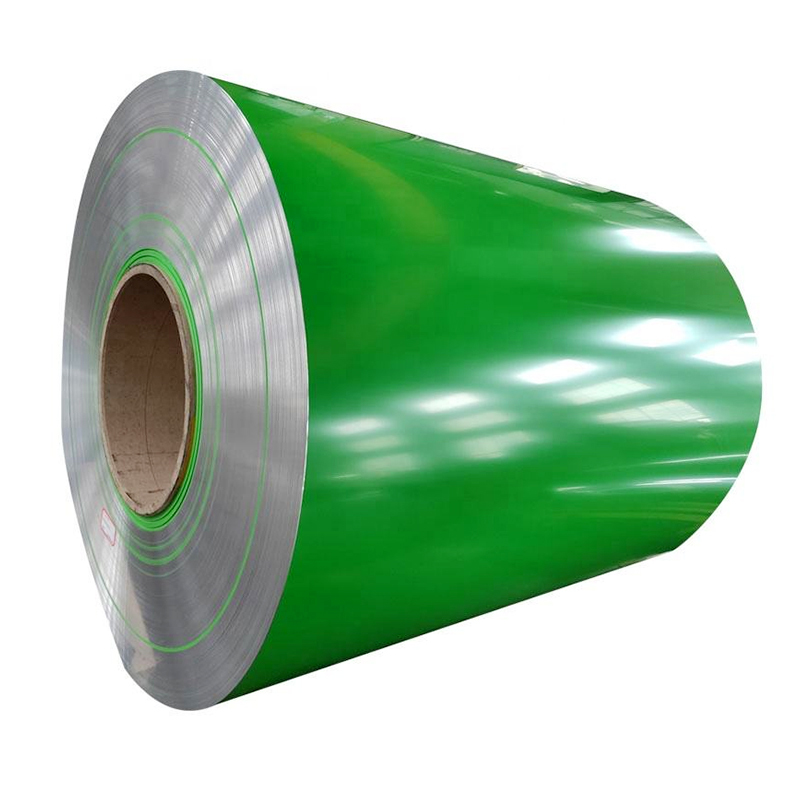

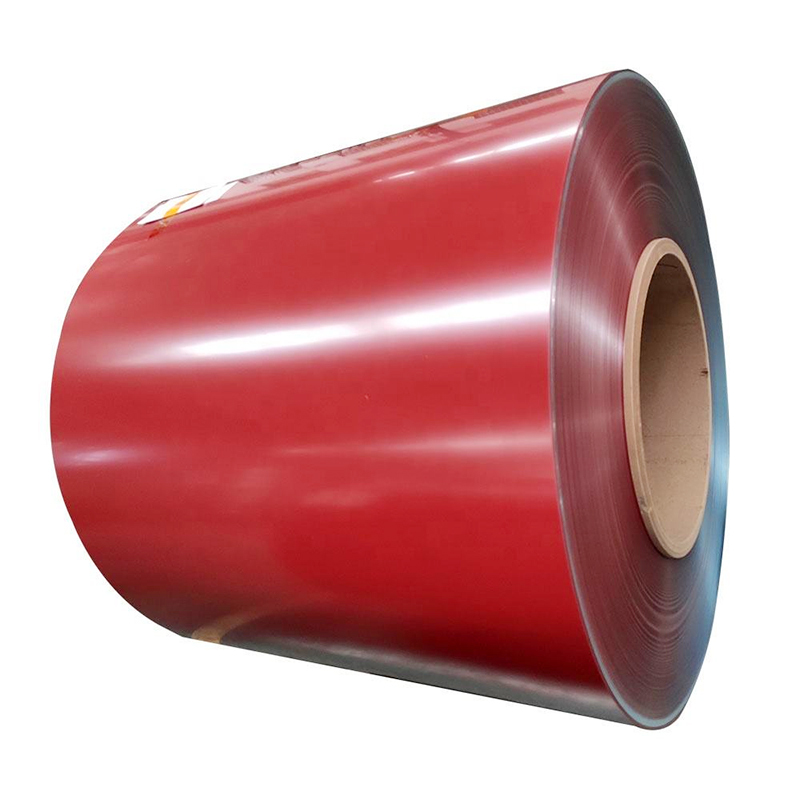

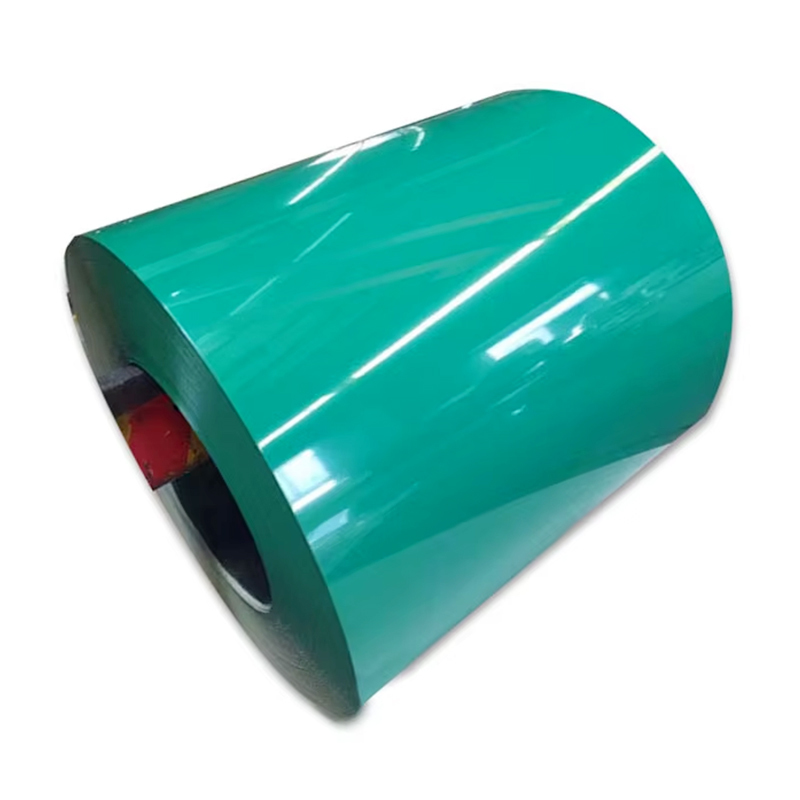

Product Images
