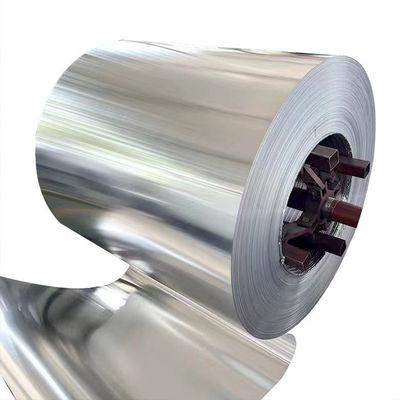

Aluminum Roll Coil 1060 1100 3003 H12 GB/T3880 1.2mm 2.5mm Aluminum Sheet for Cladding
| Place of Origin | Henan Province, China |
|---|---|
| Brand Name | Henan Yongsheng |
| Certification | ISO, RoHS |
| Model Number | Aluminum coil |
| Minimum Order Quantity | 1 Ton |
| Price | 2900-3200 USD/Ton |
| Packaging Details | Standard Seaworthy Wooden Pallet Packing |
| Delivery Time | 7-25 days after order confirmation |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 5000 Tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Alloy | 1000/3000/5000/6000/etc | Temper | O-H112 |
|---|---|---|---|
| Thickness | 0.2mm - 8mm Or Customized | Width | 50mm - 2600mm Or Customized |
| Length | Customer Requirement | Certificates | ISO9001, GS, ROHS, FDA, TUV, ISO, GL, BV |
| Port | QingDao, ShangHai, TianJin | Sample | Free |
| Highlight | 1.2mm aluminum roll coil for cladding,3003 H12 aluminum sheet with warranty,GB/T3880 aluminum coil 1100 |
||
Product Description
Aluminum Roll Coil Specifications
High-quality aluminum roll coils in grades 1060, 1100, and 3003 H12, compliant with GB/T3880 standard, available in thicknesses from 1.2mm to 2.5mm, specifically designed for cladding applications.
| Material Grades | 1050, 1060, 1100, 3003, 3004, 3105, 5005, 5052, 5083, 5754, 6061, 8011 (Customized) |
|---|---|
| Standard Specifications | ASTM B209, EN 485, JIS H4000, GB/T 3880 (Customized) |
| Processing Method | Cold Rolled, Hot Rolled |
| Temper | O, H12, H14, H16, H18, H22, H24, H26, H32, H34, T4, T6 (Customized) |
| Surface Finish | Mill Finish, Anodized, Color Coated (PE, PVDF), Embossed, Brushed, etc. |
| Width | 30mm - 2000mm or Customized |
| Thickness | 0.2mm - 6.0mm or Customized |
| Coil ID / OD | ID: 150mm / 300mm / 508mm (Customized) OD: 800mm - 1600mm (Customized) |
| Mechanical Properties | Tensile Strength: 70 - 320 MPa (Depending on grade and temper) Yield Strength: 30 - 280 MPa Elongation: ≥ 10% |
| Application | Building and Construction (facades, insulation, roofing) Packaging (bottle caps, food containers, pharmaceutical) Automotive and Transport (panels, heat exchangers, trim parts) Electrical and Electronic (transformers, insulation) Decorative and Household Uses |
| Packaging | Eye to sky or eye to wall, standard seaworthy wooden pallets, waterproof paper & film (Customized) |
Product Features & Benefits
As a core product in aluminum processing, our aluminum coils deliver exceptional performance across multiple industries with these key characteristics:
- Lightweight and High-Strength: Made from pure aluminum or aluminum alloy through precision rolling, our coils offer density approximately one-third that of steel while maintaining excellent structural strength. Ideal for transportation weight reduction and construction load-bearing requirements, significantly reducing installation and operational costs.
- Excellent Corrosion Resistance: Natural oxide layer formation provides a protective shield against air, moisture, and chemical media. Enhanced treatments including anodizing, electrocoating, and fluorocarbon spraying ensure long-term stability even in coastal or industrial corrosive environments.
- Superior Thermal and Electrical Conductivity: Among the best in common metals, making our aluminum coils ideal for heat dissipation materials and electrical components in electronics, appliances, and HVAC applications.
- Flexible Processing Performance: Excellent ductility and plasticity allow for cutting, bending, stamping, welding, and various surface treatments including sandblasting, coating, and printing to meet diverse industry specifications.
- Environmentally Friendly and Recyclable: Aluminum is infinitely recyclable with only 5% energy consumption compared to primary production. Supports green development initiatives while reducing resource dependency and waste emissions.
Industry Applications
Our aluminum coils serve as essential materials across multiple industrial sectors:
- Architectural Decoration: Color-coated aluminum coils for building exteriors, roofs, ceilings, partitions, curtain walls, and profiles combining aesthetic appeal with practical functionality.
- Transportation Sector: Automotive body panels, chassis components, rail transportation shells, and ship decks, providing weight reduction for improved fuel efficiency and corrosion resistance.
- Electronics and Electrical: Heat dissipation plates and housings for appliances, air conditioners, refrigerators, plus conductive strips and foils for power equipment including cables and transformers.
- Packaging and Printing: Aluminum foil coils for food, pharmaceutical, and cosmetic packaging, offering excellent sealing, barrier properties, and print adaptability for extended shelf life.
- Industrial Manufacturing: Structural materials for chemical equipment, medical devices, instruments, and daily products including kitchenware and furniture accessories.
Yongsheng Factory Advantages
With over 25 years of specialized experience, Yongsheng Aluminum Processing Factory delivers superior quality and service:
- Rich Production Experience: Comprehensive quality control from raw material selection to final production, utilizing advanced automated equipment and precision testing instruments to ensure international standard compliance.
- Global Export Expertise: Products exported worldwide to Europe, America, Southeast Asia, Middle East, and Africa, with customization for regional standards including EU EN, US ASTM, and Japanese JIS specifications.
- Comprehensive Service Capabilities: Multilingual support teams, technical consultation for material selection, and 7×24-hour after-sales service for seamless international cooperation.
- Innovation-Driven R&D: Significant annual investment in process improvement and new product development through university partnerships and senior engineering leadership.
- Cost-Effective Solutions: Efficient cost management through large-scale production and optimized supply chain, delivering competitive pricing without compromising quality.
