Reflective bubble insulation for windows fireproofing and heat insulation Double bubble insulation 2mm 3mm

  • Reflective bubble insulation for windows fireproofing and heat insulation Double bubble insulation 2mm 3mm
  • Reflective bubble insulation for windows fireproofing and heat insulation Double bubble insulation 2mm 3mm
  • Reflective bubble insulation for windows fireproofing and heat insulation Double bubble insulation 2mm 3mm
  • Reflective bubble insulation for windows fireproofing and heat insulation Double bubble insulation 2mm 3mm
Place of Origin Henan Province, China
Brand Name Henan Yongsheng
Certification ISO, RoHS
Model Number Double Bubble Insulation
Minimum Order Quantity 1 Ton
Packaging Details Wooden package
Delivery Time 7-25 days after order confirmation
Payment Terms L/C, D/A, D/P, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Structure Alu Foil + PE + Bubble + PE + Alu Foil Color Silver,White, Etc
Thickness 2mm Bubble * 2 Width 1.2m, Customized
Length Personalized Customization Reflectivity 96%-97%
Tensile Strength(MD) 150N/25mm Bursting Strength 650N
Highlight

reflective bubble insulation for windows

,

fireproof double bubble insulation

,

aluminum foil laminated insulation film
Leave a Message
Product Description

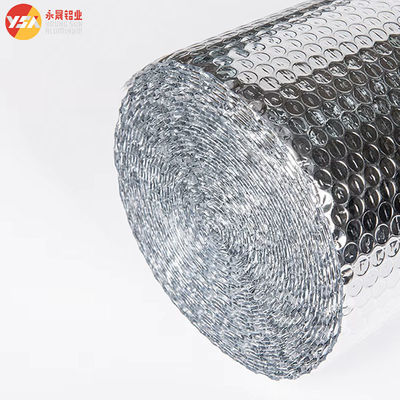

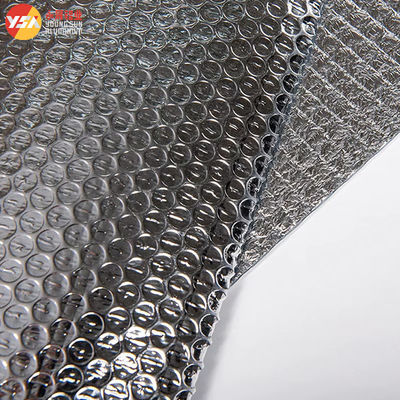

Reflective Bubble Insulation for Windows Fireproofing and Heat Insulation
Product Specifications
Attribute Value
Structure Alu Foil + PE + Bubble + PE + Alu Foil
Color Silver, White, Etc
Thickness 2mm bubble * 2
Width 1.2m, customized
Length Personalized customization
Reflectivity 96%-97%
Tensile Strength (MD) 150N/25mm
Bursting Strength 650N
About Double Bubble Insulation

Double-layer bubble insulation material is a highly efficient composite thermal insulation material. It uses the dual principles of air layer insulation and reflective insulation, and is widely used in construction, industry, agriculture and other fields to reduce heat transfer and improve energy efficiency.

Core Structure and Composition

This material consists of three basic structures to form a "sandwich" composite layer:

  • Outer layer (two sides): High reflective aluminum foil layer made of polyethylene or polyester film coated with high-purity aluminum foil. Reflects most of the radiant heat (95%-97%) and provides waterproof, moisture-proof, corrosion-resistant properties.
  • Middle layer: Double-layer polyethylene bubble film containing closed independent air bubbles that effectively block heat conduction. Some products use XPE cross-linked polyethylene foam or glass fiber cotton to enhance thermal insulation or fire resistance.
Insulation Principles
  • Reflection and insulation of radiant heat through aluminum foil layer
  • Air layer blocks conductive heat with low thermal conductivity
  • Closed bubble structure inhibits air flow and reduces heat convection
Applications
Construction Field
  • Roof/wall insulation
  • Floor heating reflective layer
  • Sun room/garage insulation
Industrial Field
  • Pipeline insulation
  • Equipment insulation for storage tanks, boilers, etc.
Agriculture and Home
  • Greenhouse outer covering
  • Daytime insulation and nighttime heat preservation
Product Gallery
Reflective bubble insulation for windows fireproofing and heat insulation Double bubble insulation 2mm 3mm 0 Reflective bubble insulation for windows fireproofing and heat insulation Double bubble insulation 2mm 3mm 1 Reflective bubble insulation for windows fireproofing and heat insulation Double bubble insulation 2mm 3mm 2 Reflective bubble insulation for windows fireproofing and heat insulation Double bubble insulation 2mm 3mm 3
Reflective bubble insulation for windows fireproofing and heat insulation Double bubble insulation 2mm 3mm 4
Reflective bubble insulation for windows fireproofing and heat insulation Double bubble insulation 2mm 3mm 5 Reflective bubble insulation for windows fireproofing and heat insulation Double bubble insulation 2mm 3mm 6
