4mm ASTM 5005 5083 5054 6061 6063 H32 H116 Marine Grade Aluminum Alloy Plate Sheet
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Alloy | 1000, 3000, 5000, 6000 Series | Temper | O, H14, H18, H24, H32, Etc |
|---|---|---|---|
| Width | 20-3000mm，etc | Thickness | 0.1-400mm，etc |
| Surface Treatment | Mill,bright,polished,hair Line,brush,sand Blast,checkered,embossed,etching,etc | MOQ | 1 Ton |
| Loading Port | Export Wooden Pallets, Craft Paper, Anti-Blushing Agent. | Packaging | FOB, CIF, CFR, CNF, Etc. |
| Highlight | Marine Grade Aluminum Alloy Plate,5083 Aluminum Alloy Plate,4mm Aluminium Plate |
||
Product Description

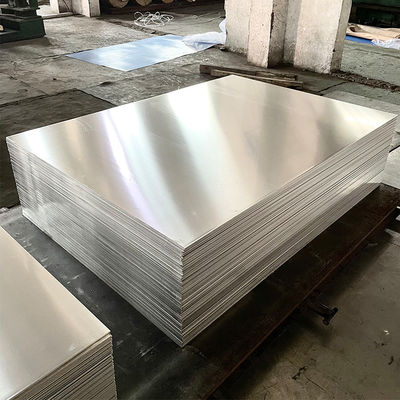

4mm Marine Grade Aluminum Alloy Plate Sheet
This high-performance marine-grade aluminum alloy plate/sheet is engineered to meet rigorous ASTM standards (ASTM B209/B928), specifically tailored for demanding marine and industrial applications. Available in 4mm thickness, it incorporates alloys 5005, 5083, 5054, 6061, and 6063, processed under H32 (strain-hardened and stabilized) and H116 (corrosion-resistant temper for marine environments) tempers.
Key Features
- Superior Corrosion Resistance: Alloys 5083 and 5054 excel in saltwater environments due to high magnesium content (3-5%), offering unmatched resistance to pitting, crevice corrosion, and stress corrosion cracking (SCC). H116 temper enhances corrosion performance through specialized stabilization, ideal for hulls, offshore platforms, and coastal infrastructure.
- High Strength-to-Weight Ratio: 5083 alloy (yield strength: 215-255 MPa) and 6061-T6 (yield: 276 MPa) provide exceptional load-bearing capacity while reducing structural weight, critical for vessel efficiency and fuel savings.
- Weldability & Formability: 5005/5054 alloys exhibit excellent weldability (TIG/MIG) and cold-forming properties, enabling complex fabrication without cracking. 6063 alloy is optimized for extruded profiles, ideal for railings, masts, and trim.
- Low-Temperature Toughness: 5083 alloy maintains ductility down to -196°C, suitable for cryogenic storage tanks and polar vessels.
Product Specifications
| Thickness | 0.1-400 mm | Length | 100-12000 mm, or as required |
|---|---|---|---|
| Width | 20-3000 mm | Standard | AISI, JIS, DIN, EN |
| Certification | ISO, SGS, BV | ||
| Surface Finish | mill, bright, polished, hairline, brush, sandblast, checkered, embossed, etching, etc. | ||
| Grade |
1000 Series: 1050 1060 1070 1100, etc. 3000 Series: 3003 3A21 etc. 5000 Series: 5052 5083 5754 5A02 5A05 5A06 etc. 6000 Series: 6061 6063 6082, etc. |
||
| Temper | H12, H14, H16, H18, H20, H22, H24, H26, H28, H32, H36, H38, HO, H111, H112, H114, H116, H118, H321 | ||
| Payment Terms | T/T, L/C at sight, West Union, D/P, D/A, Paypal | Port | Shanghai |
| Packing | standard export packing (inside: proof paper; outside: steel covered with strips and pallets) | ||
Container Sizes
20ft GP: 5898 mm (length) x 2352 mm (width) x 2393 mm (height)
40ft GP: 12032 mm (length) x 2352 mm (width) x 2393 mm (height)
40ft HC: 12032 mm (length) x 2352 mm (width) x 2698 mm (height)
40ft GP: 12032 mm (length) x 2352 mm (width) x 2393 mm (height)
40ft HC: 12032 mm (length) x 2352 mm (width) x 2698 mm (height)
