3003 5052 Alloy Aluminum Honeycomb Core For Composite Panel

  • 3003 5052 Alloy Aluminum Honeycomb Core For Composite Panel
  • 3003 5052 Alloy Aluminum Honeycomb Core For Composite Panel
  • 3003 5052 Alloy Aluminum Honeycomb Core For Composite Panel
  • 3003 5052 Alloy Aluminum Honeycomb Core For Composite Panel
  • 3003 5052 Alloy Aluminum Honeycomb Core For Composite Panel
  • 3003 5052 Alloy Aluminum Honeycomb Core For Composite Panel
  • 3003 5052 Alloy Aluminum Honeycomb Core For Composite Panel
Place of Origin Zhengzhou Henan
Brand Name Henan Yongsheng
Certification ISO, RoHS, FDA
Model Number 3003 5052 Alloy
Minimum Order Quantity 1 ton
Packaging Details Seaworthy Export Standard Wooden Box
Delivery Time 7-25 days after order confirmation
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 5000 tons per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 3003 5052 Aluminum Honeycomb Core Foil Alloy 3003, 5052
Temper O, F, H12, H14, H18, H22, H24, H26, H32, Etc Thickness 0.016-0.2mm
Width 100-1600mm Sample Free
MOQ 1 Ton Shape Hexagon
Highlight

5052 Aluminum Honeycomb Core

,

Composite Panel Aluminum Honeycomb Core

,

3003 Aluminum Honeycomb Core
Leave a Message
Product Description
3003 5052 Alloy Aluminum Honeycomb Core For Composite Panel
Product Overview

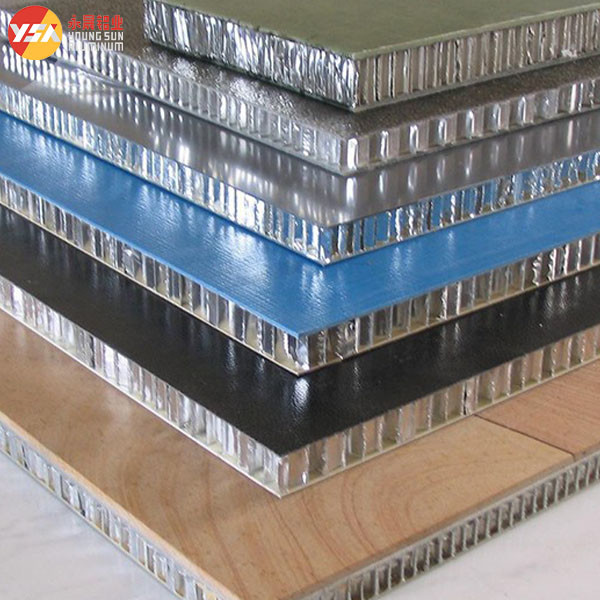

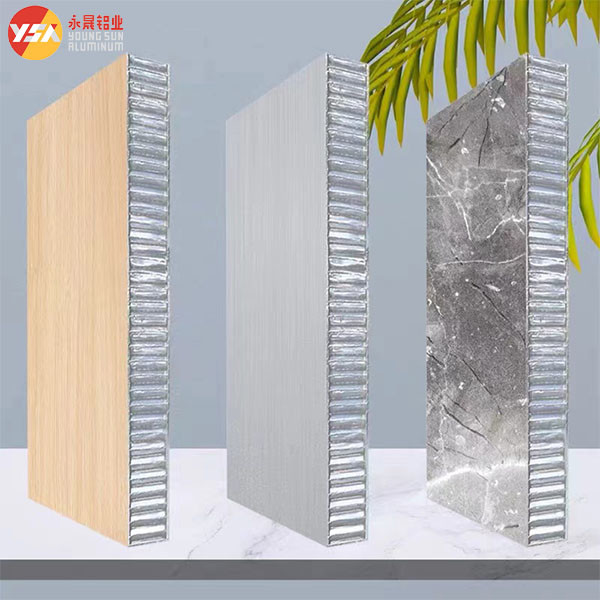

Aluminum honeycomb panels feature upper and lower aluminum alloy plates with a thick, lightweight honeycomb core in between. The panels and sandwich core are bonded together using adhesives to form an integral rigid structure. Panel surfaces can be treated with fluorocarbon coating, roller coating, thermal transfer, wire drawing, or oxidation processes. These panels can also be bonded with fireproof panels, stone, and ceramic materials.

Material Specifications
  • Upper and lower plates are manufactured from high-quality 3003-H24 or 5052-H14 alloy aluminum
  • Aluminum plate thickness ranges from 0.4 mm to 3.0 mm
  • Honeycomb core material consists of 3003 aluminum foil with thickness of 0.02-0.06mm
  • Aluminum honeycomb side length models include 5 mm, 6 mm, 8 mm, 10 mm, and 12 mm
Performance Advantages

The honeycomb sandwich structure features thin, lightweight base plates and panels with a porous core material of low density. Combined with aluminum's inherent lightweight properties, this design delivers exceptional weight reduction benefits. Aluminum honeycomb panels are widely used in building exterior wall decoration, furniture, and vehicle construction due to their light weight, high strength, and superior rigidity.

Technical Specifications
ITEM DETAILS
Aluminum Alloy 3003, 5052, etc.
Aluminum Foil Thickness 0.01-0.2 mm, etc.
Aluminum Honeycomb Core Cell Size
(Cell Size = Cell Side Length x 1.732) (mm)		 0.5 - 15 mm, or according to customer requirements
Supply Form Expanded or unexpanded full blocks or cut slices, perforated or imperforated
Mechanical Properties
Alloy Honeycomb Compression Plate Shear L Direction Plate Shear W Direction
Material Cell Size mm - inch Bare Strength psi (Typ.) Strength psi (Typ.) / Modulus ksi (Typ.) Strength psi (Typ.) / Modulus ksi (Typ.)
6.4 - 1/4 625 365 / 70 215 / 38
9.5 - 3/8 340 230 / 45 130 / 22
12.7 - 1/2 190 140 / 28 80 / 14
17 - 3/4 120 100 / 20 65 / 11
25.4 - 1 80 65 / 14 45 / 7
9.5 - 3/8 362 250 / 55 160 / 26
Sizes are available on request; above values are not guaranteed and should be used as indication only.
Product Gallery
3003 5052 Alloy Aluminum Honeycomb Core For Composite Panel 0
3003 5052 Alloy Aluminum Honeycomb Core For Composite Panel 1
3003 5052 Alloy Aluminum Honeycomb Core For Composite Panel 2
3003 5052 Alloy Aluminum Honeycomb Core For Composite Panel 3
3003 5052 Alloy Aluminum Honeycomb Core For Composite Panel 4
3003 5052 Alloy Aluminum Honeycomb Core For Composite Panel 5
3003 5052 Alloy Aluminum Honeycomb Core For Composite Panel 6
