Air Cell Insulation Reflective Aluminium Bubble Foil Insulation Thermal Soundproof Materials
Place of Origin | Zhengzhou Henan |
---|---|
Brand Name | Henan Yongsheng |
Certification | ISO, RoHS |
Model Number | Aluminium Bubble Foil Insulation |
Minimum Order Quantity | Small MOQ is accepted |
Price | FOB, CIF, CFR, CNF, etc. |
Packaging Details | Customized Packing |
Delivery Time | 7-25 days after order confirmation |
Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Structure | Aluminum Foil+Bubble+White Pe Film | Color | Silver |
---|---|---|---|
Slitting Width | Customizaed | Roll Size | 1.2*40m Per Roll |
Reflectivity | 97% | Thickness | 4mm Or Customzied |
Highlight | Soundproof Aluminium Bubble Foil,Reflective Aluminium Bubble Foil,Soundproof Aluminum Foil Laminated Polyester Film |
Product Description
Air Cell Insulation Reflective Aluminium Bubble Foil Insulation Thermal Soundproof Materials
Product Introduction
Air cell insulation is a special form of reflective aluminum bubble foil that has become the preferred choice for applications that require superior heat resistance and sound insulation.
Air cell insulation consists of multiple layers of air bubbles sandwiched between reflective aluminum foil. It works on the principle of radiant heat reflection and thermal resistance.
The reflective aluminum surface reflects radiant heat back to its source, while the trapped air bubbles act as an insulator, reducing the conduction of heat and sound through the material.
Air cell insulation consists of multiple layers of air bubbles sandwiched between reflective aluminum foil. It works on the principle of radiant heat reflection and thermal resistance.
The reflective aluminum surface reflects radiant heat back to its source, while the trapped air bubbles act as an insulator, reducing the conduction of heat and sound through the material.
Temperature range | -76F ~+212F (ASTM C411) |
R-value | 2.0~11.2 |
Fire-proofing | Class A/Class 1 |
Emissivity | 0.03-0.04 COEF |
Thermal Conductivity | 0.032 -0.036W/m0 |
Apparent Density | 54.8 kg/m3 |
Reflectivity | 96-97% |
Vapor Transmission | 0.012 g/m2kpa |
Corrosion | Doesn’t generate |
Tensile Strength(MD) | 13.43 Mpa |
Tensile Strength(TD) | 14.58 Mpa |
1. The outer layer of reflective aluminum foil is engineered to reflect up to 97% of radiant heat, significantly enhancing the thermal performance of the material.
2. The inner air bubbles act as a thermal barrier, preventing heat from passing through the material. This layer helps minimize heat loss in the winter and gain in the summer.
3. The construction of Air Cell insulation makes it lightweight and easy to handle, which reduces installation time. It can be cut and shaped without affecting its insulating properties, making it ideal for areas with complex or irregular surfaces.
4. Air cell insulation is resistant to moisture, rot and mildew, making it suitable for a variety of environments, including areas of high humidity. It also has a long service life, maintaining its efficiency for long periods of time without noticeable degradation.
2. The inner air bubbles act as a thermal barrier, preventing heat from passing through the material. This layer helps minimize heat loss in the winter and gain in the summer.
3. The construction of Air Cell insulation makes it lightweight and easy to handle, which reduces installation time. It can be cut and shaped without affecting its insulating properties, making it ideal for areas with complex or irregular surfaces.
4. Air cell insulation is resistant to moisture, rot and mildew, making it suitable for a variety of environments, including areas of high humidity. It also has a long service life, maintaining its efficiency for long periods of time without noticeable degradation.
Product Parameter
Main Material | Aluminum Foil, metal foil, PE Bubble, |
Material Structure |
MPET+Bubble+ +White Pe Film Aluminum Foil+Bubble+White Pe Film Aluminum Foil+Bubble+White Pe Film Colorful Coating+Aluminum Foil+Bubble + White Pe Film |
Bubble | Pe bubble, diameter is 10mm, height can be 3/4/6/8mm, Diameter is 20mm, height will be 7mm |
Normal Insulation Thickness | 4mm,6mm,7mm,8mm |
Bubble color | regular is clear or white |
Reflectivity | 97% |
Normal Roll Size | 1.2m*30m/roll, 1.2*40m/roll, 1.5*20m/roll, also can be customized; max width is 1.5m |
Packing | 1 roll/pe bag, pe bag can be printed customized |

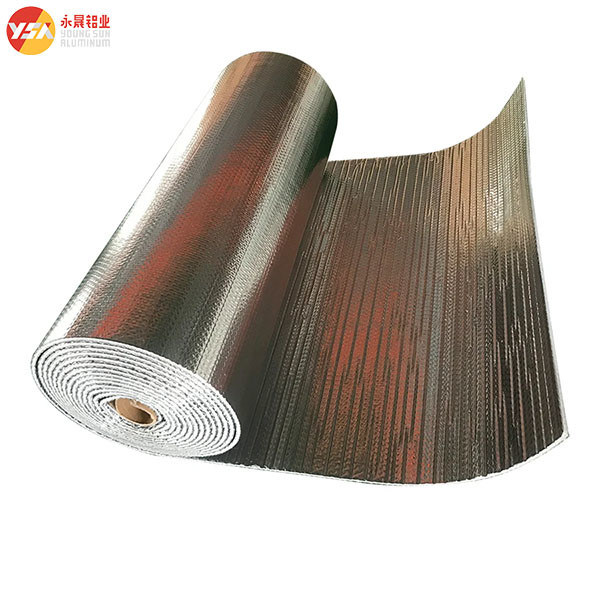

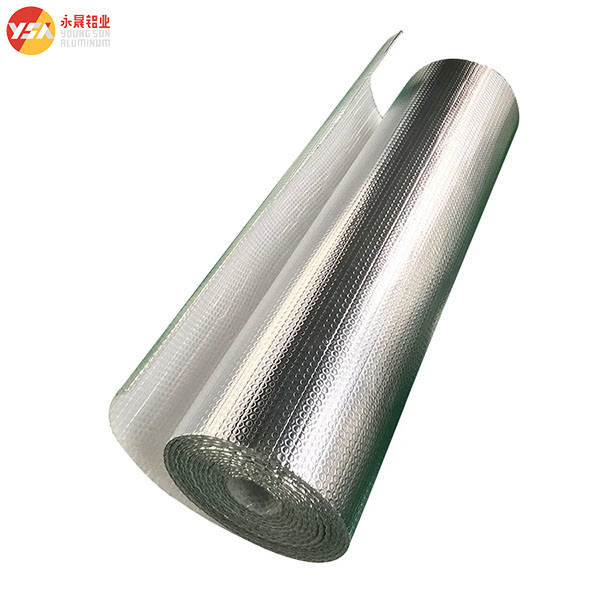

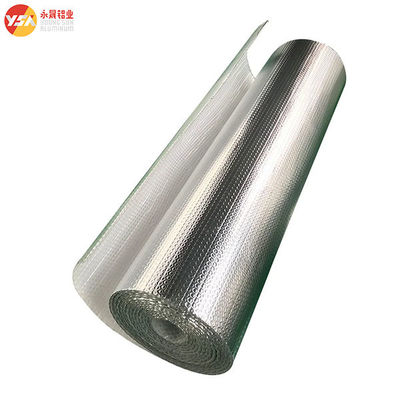

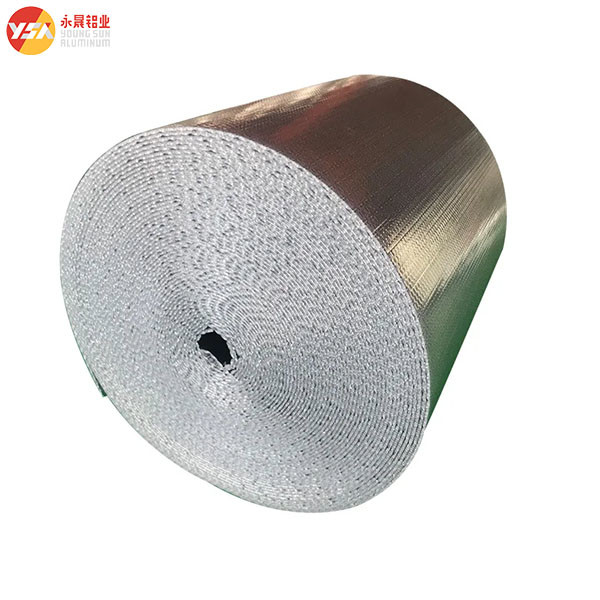

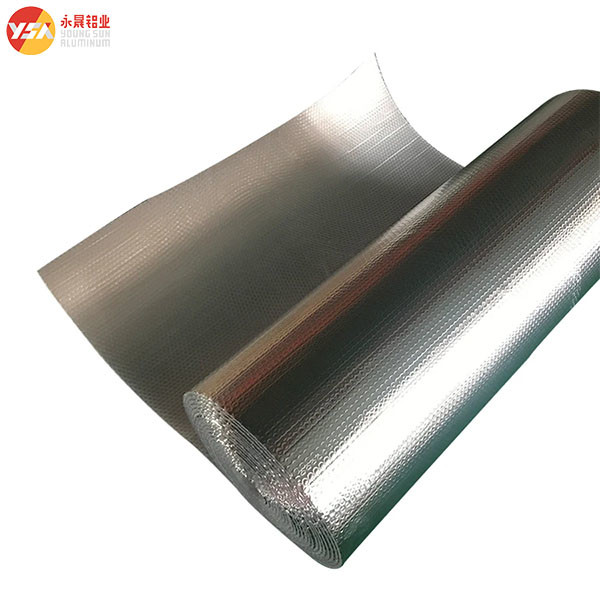

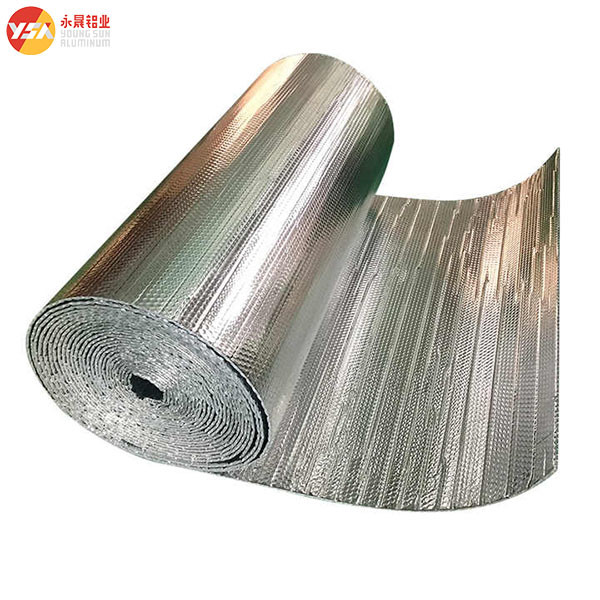

Product Show
