Black Glue Aluminum Polyester Laminating Duct PET+HDPE+VMPET Film
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Color | Black | Raw Material | PET+HDPE+VMPET |
|---|---|---|---|
| ID | 76mm | OD | ≤700mm |
| Slitting Width | 20-90mm | PET Thickness | 0.01-0.016mm |
| VMPET Thickness | 0.012-0.016mm | HDPE Thickness | 0.018-0.02mm |
| Highlight | HDPE Aluminum Polyester Laminating Duct,VMPET Aluminum Polyester Laminating Duct,Black Glue Aluminum Polyester Laminating Duct |
||
Product Description
Black Glue Aluminum Polyester Laminating Duct PET+HDPE+VMPET Film
Advanced laminated duct film combining polyethylene terephthalate (PET), high-density polyethylene (HDPE), and vacuum-metallized polyester (VMPET) with specialized black adhesive for enhanced performance and application versatility.
Product Overview
This specialized laminated duct film integrates multiple material layers with black adhesive technology to deliver superior performance in HVAC systems, flexible packaging, and insulation applications.
Key Features
- High Barrier Protection: Excellent resistance to moisture, oxygen, and light through PET, HDPE, and VMPET layers
- Enhanced Durability: Laminated structure provides superior resistance to punctures, tears, and environmental factors
- Thermal Insulation: Maintains effective temperature control for HVAC system applications
- Easy Installation: Black adhesive enables direct bonding to various surfaces without additional preparation
Technical Specifications
| Color | Black |
| Inner Diameter (mm) | 38 / 53 / 76 / 152 |
| Slitting Width (mm) | 5-50 |
| Outside Diameter (mm) | 100-700 |
| VMPET Thickness (mm) | 0.012-0.016 |
| PET Thickness (mm) | 0.01-0.016 |
| HDPE Thickness (g/m²) | 0.018-0.02 |
| Structure |  |
Quality Standards
Our slitting tolerance is maintained within 0.5 mm to ensure precise aluminum foil alignment during duct production. Proper slitting width is determined by duct diameter and wire spacing requirements. For optimal fire resistance, we recommend installing single-sided aluminum foil with the foil facing inward.

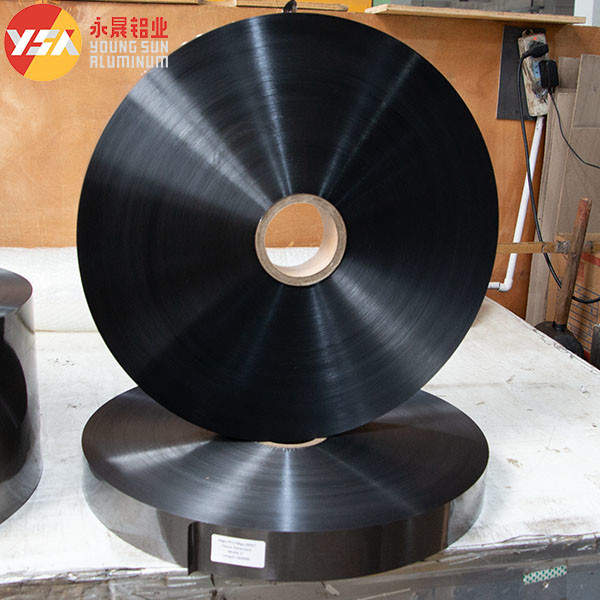

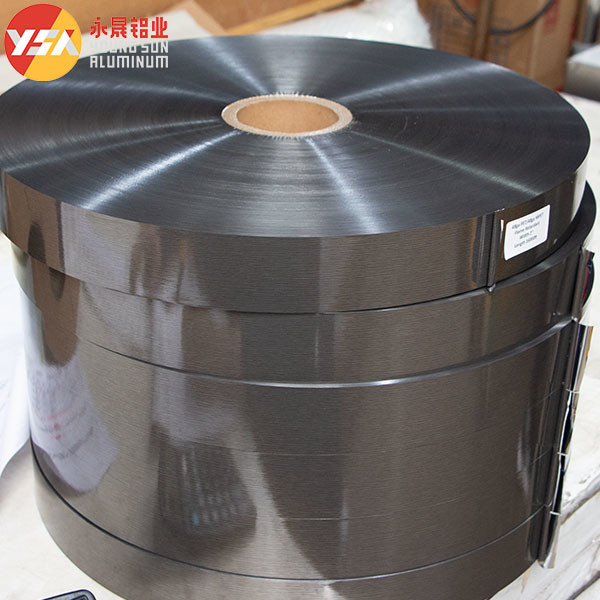

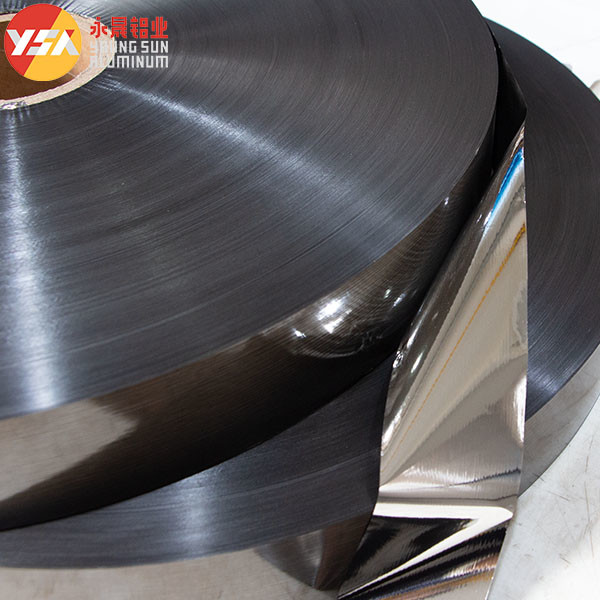

Product Gallery
Application Examples
