T351 Temper Pvdf Color Coated Aluminum Coil 3004 Golden Color

Place of Origin Henan China
Brand Name Yongsheng
Certification SGS
Model Number Color Coated Aluminum Coil
Minimum Order Quantity 2 tons
Price USD2700tons
Packaging Details wooden package
Delivery Time 7-30 workdays
Payment Terms L/C, D/A, D/P, T/T, Western Union,
Supply Ability 5000tonspermonth
Product Details
Product Name Color (Coating) Aluminum Coil/Sheet Alloy/Grade 1000Series, 3000Series, 5000Series, 6000Series
Temper O-H112,T3-T8,T351-T851 Thickness 0.2mm-6.5mm
Width 10mm-1600mm Length As Per Your Requirements
Delivery Time 7-30 Days After Order Confirmation MOQ 2 Tons
High Light

Pvdf Color Coated Aluminum Coil

,

T351 Color Coated Aluminum Coil

,

6.5mm Color Coated Aluminum Coil

Leave a Message
Product Description

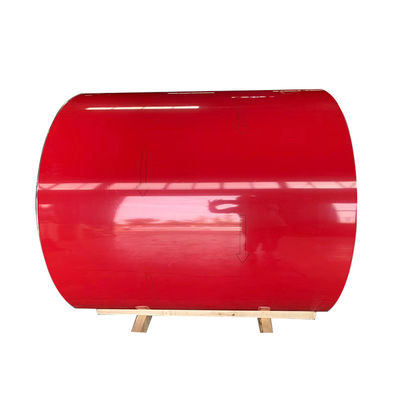

T351 Temper Pvdf Color Coated Aluminum Coil 3004 Golden Color 0

Name : Pe/Pvdf Color Coated Aluminum Coil Aluminum 3004 Golden Color






 Color Coated Aluminum Description



PVDF:

fluorocarbon is paints materials used for the surface coating of aluminum sheets. The surface of the high - quality PVDF color coated aluminium sheet has a strong metallic luster with a clear color and a strong three-dimensional effect . PVDF fluorocarbon coated aluminum sheet is used for outdoor roofing and exterior wall decoration , the thickness is 2.5mm - 4mm . The surface of coated aluminium sheet is uniform , smooth , no leakage coating , shrinkage , scratching , peeling and other obvious defects .

As the PVDF coating provides corrosion resistance , high weatherability , strong adhesion , high self - cleaning capability and is maintenance – free , the aluminum coated coil can remain color fast and durable for 10 - 15 years .



PE:

The polyester painted aluminum coil is made by coating polyester paint which can form varied decorative film on the aluminum surface . The polyester paint used for the aluminum coated coil is available in a wide variety of bright colors , which can meet different customer needs for bright , colorful interior decoration . The polyester paint glossiness is high up to 95% . It is ideal for advertising boards .

YongSheng PE color coated aluminum coil with good PE Paints and high performance of aluminum coil is produced by advanced roller coating . All performance parameters are up to or higher than related national standards .





YONGSHENG ALUMINUM—specializes in producing color coated aluminum coil for Exterior and Interior applications. Color coated aluminum coil is a salt with an excellent acid-resistant material.Coating to maintain a long light.It is an environmentally friendly,fire-resistant properties of the green and beautiful decorative.color coated aluminum coil are widely used in ACP,curtain panel,honey comb panel,shutter,roofing and most of the decoration areas.Our products had been export to Euro,Middle East,North America,East Asia and many other areas and Countries.



Henan Yongsheng Aluminum Industry
Alloy State Thickness(mm) Tensile Strength(Mpa) The Yield Strength(Mpa) elongation(%) hardness(HV)
1060
(1050)
0 >0.2-0.5 60-100 ≥15 ≥20 20-30
>0.5-1.0 ≥30
>1.0-4.0 ≥35
H22 >0.2-0.5 80-120 ≥60 ≥12 30-40
>0.5-1.0 ≥15
>1.0-4.0 ≥18
H24 >0.2-0.5 95-135 ≥70 ≥6 35-45
>0.5-1.0 ≥8
>1.0-4.0 ≥10
H26 >0.2-0.5 110-155 ≥75 ≥2 43-55
>0.5-1.0 ≥4
>1.0-4.0 ≥6
H18 >0.2-0.5 ≥125 ≥85 ≥2 50-65
>0.5-1.0 ≥3
>1.0-4.0 ≥4



1100
(1200)

0 >0.2-0.5 75-105 ≥25 ≥18 25-30
>0.5-1.0 ≥30
>1.0-4.0 ≥35
H22 >0.2-0.5 95-130 ≥75 ≥12 30-40
>0.5-1.0 ≥15
>1.0-4.0 ≥18
H24 >0.2-0.5 110-145 ≥95 ≥6 38-40
>0.5-1.0 ≥8
>1.0-4.0 ≥10
H26 >0.2-0.5 130-165 ≥115 ≥2 45-60
>0.5-1.0 ≥4
>1.0-4.0 ≥6
H18 >0.2-0.5 ≥150 ≥130 ≥2 55-70
>0.5-1.0 ≥3
>1.0-4.0 ≥4
3003
(3A21)
0 > 0.2-0.5 95-140 ≥ 35 ≥ 15 30-40
> 0.5-1.0 ≥ 30
> 1.0-4.0 ≥ 35
H22 > 0.2-0.5 120-160 ≥90 ≥ 12 39-53
> 0.5-1.0 ≥ 15
> 1.0-4.0 ≥ 18
H24 > 0.2-0.5 145-195 ≥125 ≥ 6 42-59
> 0.5-1.0 ≥ 8
> 1.0-4.0 ≥ 10
H26 > 0.2-0.5 170-210 ≥150 ≥ 2 55-65
> 0.5-1.0 ≥ 4
> 1.0-4.0 ≥ 6
H18 > 0.2-0.5 ≥ 190 ≥ 170 ≥ 2 60-85
> 0.5-1.0 ≥ 3
> 1.0-4.0 ≥ 4
3004
(3104)
0 > 0.2-0.5 155-200 ≥ 60 ≥ 13 49-62
> 0.5-1.0 ≥ 16
> 1.0-4.0 ≥ 20
H22 > 0.2-0.5 190-240 ≥ 145 ≥ 10 60-84
> 0.5-1.0 ≥ 12
> 1.0-4.0 ≥ 14
H24 > 0.2-0.5 220-265 ≥ 170 ≥ 8 68-100
> 0.5-1.0 ≥ 10
> 1.0-4.0 ≥ 12
H26 > 0.2-0.5 240-285 ≥ 190 ≥ 3 72-110
> 0.5-1.0 ≥ 4
> 1.0-4.0 ≥ 6
H18 > 0.2-0.5 ≥ 260 ≥ 230 ≥ 2 85-120
> 0.5-1.0 ≥ 2
> 1.0-4.0 ≥ 3
3005 0 >0.2-0.5 115-165 ≥45 ≥13 35-45
>0.5-1.0 ≥20
>1.0-4.0 ≥25
H22 >0.2-0.5 145-195 ≥110 ≥10 40-60
>0.5-1.0 ≥15
>1.0-4.0 ≥15
H24 >0.2-0.5 170-215 ≥130 ≥6 58-70
>0.5-1.0 ≥8
>1.0-4.0 ≥10
H26 >0.2-0.5 195-240 ≥160 ≥3 65-83
>0.5-1.0 ≥4
>1.0-4.0 ≥6
H18 >0.2-0.5 ≥220 ≥200 ≥2 80-100
>0.5-1.0 ≥3
>1.0-4.0 ≥3
3105 0 >0.2-0.5 75-105 ≥25 ≥14 32-42
>0.5-1.0 ≥20
>1.0-4.0 ≥25
H22 >0.2-0.5 95-130 ≥75 ≥10 39-60
>0.5-1.0 ≥12
>1.0-4.0 ≥12
H24 >0.2-0.5 110-145 ≥95 ≥8 52-62
>0.5-1.0 ≥10
>1.0-4.0 ≥10
H26 >0.2-0.5 130-165 ≥115 ≥3 58-72
>0.5-1.0 ≥4
>1.0-4.0 ≥6
H18 >0.2-0.5 ≥150 ≥130 ≥2 65-95
>0.5-1.0 ≥2
>1.0-4.0 ≥3









 Color Coated Aluminum Technical Data

  • Alloy / Grade : 1000 Series , 2000 Series , 3000 Series , 5000 Series , 6000 Series , 7000 Series , 8000 Series
  • Temper : O - H112 , T3 - T8 , T351 - T851
  • Thickness : 0.2mm - 6.0mm
  • Width : 10mm-1600mm
  • Length : As per your requirements
  • Application : Building, Decoration, construction , etc.
  • Surface treatment :PVDF Coating , PE Coating etc.
  • Color :As per your requirements
  • Coil ID : As per your requirements
  • Tolerances : As per your requirements
  • Surface treatment : Coating , embossing
  • Tolerances : As per your requirements
  • MOQ : 3 ton
  • Package : Wooden Pallets
  • Delivery time : 7-30 days after order confirmation
  • Price terms : FOB, CIF, CFR, CNF, Etc.
  • Loading Port : China Main Port
  • Payment terms : L/C,D/A,D/P,T/T , West Union, Money Gram, Etc .
  • Special Specification is available on customer ’ s requirement






 Color Coated Aluminum Show

T351 Temper Pvdf Color Coated Aluminum Coil 3004 Golden Color 1

T351 Temper Pvdf Color Coated Aluminum Coil 3004 Golden Color 2

T351 Temper Pvdf Color Coated Aluminum Coil 3004 Golden Color 3T351 Temper Pvdf Color Coated Aluminum Coil 3004 Golden Color 4T351 Temper Pvdf Color Coated Aluminum Coil 3004 Golden Color 5T351 Temper Pvdf Color Coated Aluminum Coil 3004 Golden Color 6






 Packing conditions

T351 Temper Pvdf Color Coated Aluminum Coil 3004 Golden Color 7



Packing details :

  • l Normally , for Color Coated aluminium , 20MT can be loaded into 20 foot container , we suggest to use 20 foot container , the sea freight rate is much cheaper than 40 foot container .
  • l the packing is very strong , which has 3 lays , thick fiber , foam , plastic , enough drying agent , suitable for long distance sea transportation .
  • l We use wooden pallet and steel pallet according to customer request ;
  • l Wooden boxes will be used in the outside packing .
  • l We have fixing in the container to avoid any damage during the transportation .
  • l 24 wooden boxes in one 20ft container .







 FAQ



1. who are we?
Henan Yongsheng Aluminum Co. , Ltd . is located in Gongyi City Industrial Cluster Area , Henan Province . The factory focuses on the production and development of aluminum products such as Aluminum Strip , Color Aluminum , Aluminum Sheet , Aluminum Coil , Pressed Aluminum Product , Embossed Aluminum , and non-slip aluminum Sheet . The factory covers an area of 100 , 000 square meters , has 476 employees , has 20 casting processing production lines , 2 color coated aluminum coil production lines , 3 slitting production lines , 4 shearing production lines , 32 punch presses , 10 CNC lathes , 4 The embossed aluminum production line has an annual output of more than 200 , 000 tons , and exports account for more than 40 % .

2. how can we guarantee quality?

1 - we can provide samples . We can send the samples by TNT,DHL, FEDEX, EMS, UPS or to your warehouse .

2 - Always a pre-production sample before mass production .

3 - Always final Inspection before shipment .


3. How long will it take to execute my order?
Our normal produce time is 7-15 working days.

4. How much will the shipping cost be?
This will depend on the size and weight of your order and the method of shipping.

5. Do you have products in stock?
There are 10000 tons stock for various size .plsease inform us what model you need , we will send stock details to you .

6. why should you buy from us not from other suppliers?

1 - 20 years experience in aluminum industry .

2 - Source manufacturers, leading equipment, excellent team skills .

3 - Low price, fast delivery and excellent quality .

4 - Professional technical solution .


7. what services can we provide?

1 - Accepted Delivery Terms : FOB , CFR , CIF , EXW , CIP , CPT , DDP , DDU ;

2 - Accepted Payment Currency : USD , EUR , HKD , GBP , CNY;

3 - Accepted Payment Type : T / T , L / C,D/P D/A , , Credit Card , PayPal , Western Union , Cash , Escrow ;

4 - Language Spoken : English , Chinese , Spanish , Japanese , Portuguese , Korean .










Reliable quality , reasonable price and prompt delivery are insured to be offer to you .
TELL US WHAT U NEED , THEN WE WILL TRY OUR BEST .
