3003 3105 Color Coated Aluminum Coil PE PVDF Painted

  • 3003 3105 Color Coated Aluminum Coil PE PVDF Painted
  • 3003 3105 Color Coated Aluminum Coil PE PVDF Painted
Place of Origin Henan China
Brand Name Yongsheng
Certification SGS
Model Number Color Coated Aluminum Coil
Minimum Order Quantity 3 tons
Price USD2500tons
Packaging Details wooden package
Delivery Time 7-30 workdays
Payment Terms L/C, D/A, D/P, T/T, Western Union,
Supply Ability 5000tonspermonth

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Color Coated Aluminum Coil Place Of Origin China
Brand Yongsheng Aluminum Industry Co., Ltd. Alloy/Grade 1000series-8000series
Temper O - H112 , T3 - T8 , T351 - T851 Thickness 0.2mm - 6.0mm
Width 10mm-1600mm Length As Per Your Requirements
Highlight

3105 Color Coated Aluminum Coil

,

PVDF Painted Color Coated Aluminum Coil

,

3003 Painted Color Coated Aluminum Coil
Leave a Message
Product Description
3003 3105 Color Coated Aluminum Coil with PE & PVDF Coatings
Product Overview
High-quality color coated aluminum coils available with either PVDF (polyvinylidene fluoride) or PE (polyester) coatings, suitable for various industrial and architectural applications.
PVDF Coating Features
PVDF coating consists of vinylidene fluoride homopolymer or copolymer with other fluorine-containing vinyl monomers. This chemical structure provides exceptional stability, resulting in superior:
  • Wear resistance
  • Impact resistance
  • Fade resistance
  • UV resistance
PE Coating Features
Polyester coating uses high molecular polymer as monomer with added alkyd, creating a UV-resistant finish. Available in matte or glossy variations, it offers:
  • Compact molecular structure for smooth, glossy surface
  • Excellent printability for panel surfaces
  • 8-10 year weather resistance warranty
  • Ideal for interior decoration and signage
Technical Specifications
Alloy State Thickness (mm) Tensile Strength (Mpa) Yield Strength (Mpa) Elongation (%) Hardness (HV)
1060 (1050) 0 > 0.2-0.5 60-100 ≥ 15 ≥ 20 20-30
> 0.5-1.0 60-100 ≥ 15 ≥ 30 20-30
> 1.0-4.0 60-100 ≥ 15 ≥ 35 20-30
H22 > 0.2-0.5 80-120 ≥ 60 ≥ 12 30-40
> 0.5-1.0 80-120 ≥ 60 ≥ 15 30-40
> 1.0-4.0 80-120 ≥ 60 ≥ 18 30-40
H24 > 0.2-0.5 95-135 ≥ 70 ≥ 6 35-45
> 0.5-1.0 95-135 ≥ 70 ≥ 8 35-45
> 1.0-4.0 95-135 ≥ 70 ≥ 10 35-45
H26 > 0.2-0.5 110-155 ≥ 75 ≥ 2 43-55
> 0.5-1.0 110-155 ≥ 75 ≥ 4 43-55
> 1.0-4.0 110-155 ≥ 75 ≥ 6 43-55
H18 > 0.2-0.5 ≥ 125 ≥ 85 ≥ 2 50-65
> 0.5-1.0 ≥ 125 ≥ 85 ≥ 3 50-65
> 1.0-4.0 ≥ 125 ≥ 85 ≥ 4 50-65
Product Specifications
  • Alloy/Grade: 1000, 2000, 3000, 5000, 6000, 7000, 8000 Series
  • Temper: O-H112, T3-T8, T351-T851
  • Thickness: 0.2mm - 6.0mm
  • Width: 10mm - 1600mm
  • Length: Custom requirements
  • Application: Building, decoration, construction, etc.
  • Surface Treatment: PVDF Coating, PE Coating, embossing
  • Color: Custom requirements
  • Coil ID: Custom requirements
  • MOQ: 3 tons
  • Package: Wooden Pallets
  • Delivery Time: 7-30 days after order confirmation
  • Price Terms: FOB, CIF, CFR, CNF, etc.
  • Loading Port: China Main Port
  • Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, etc.
Product Gallery

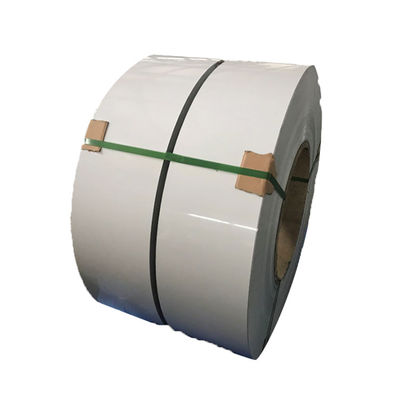

3003 3105 Color Coated Aluminum Coil PE PVDF Painted 0 3003 3105 Color Coated Aluminum Coil PE PVDF Painted 1
Packaging Details
3003 3105 Color Coated Aluminum Coil PE PVDF Painted 2
  • 20MT capacity in 20-foot container (recommended for cost efficiency)
  • Three-layer protective packaging: thick fiber, foam, plastic with drying agent
  • Suitable for long-distance sea transportation
  • Wooden or steel pallets available per customer request
  • External wooden box packaging
  • Container securing to prevent transportation damage
  • 24 wooden boxes per 20ft container
Frequently Asked Questions
Who are we?
Henan Yongsheng Aluminum Co., Ltd. is located in Gongyi City Industrial Cluster Area, Henan Province. Our 100,000 square meter facility employs 476 staff and operates 20 casting lines, 2 color coating lines, 3 slitting lines, 4 shearing lines, 32 punch presses, 10 CNC lathes, and 4 embossed aluminum production lines. Annual output exceeds 200,000 tons with over 40% export volume.
How can we guarantee quality?
• Sample provision via TNT, DHL, FEDEX, EMS, UPS
• Pre-production samples before mass production
• Final inspection before shipment
How long will it take to execute my order?
Normal production time: 7-15 working days
How much will the shipping cost be?
Depends on order size, weight, and shipping method.
Do you have products in stock?
10,000 tons of various sizes available - contact for stock details.
Why should you buy from us?
• 20 years aluminum industry experience
• Source manufacturer with leading equipment and skilled team
• Competitive pricing, fast delivery, and excellent quality
• Professional technical solutions
What services can we provide?
• Delivery Terms: FOB, CFR, CIF, EXW, CIP, CPT, DDP, DDU
• Payment Currency: USD, EUR, HKD, GBP, CNY
• Payment Methods: T/T, L/C, D/P, D/A, Credit Card, PayPal, Western Union, Cash, Escrow
• Languages: English, Chinese, Spanish, Japanese, Portuguese, Korean
Reliable quality, reasonable price and prompt delivery are insured to be offered to you.
TELL US WHAT YOU NEED, THEN WE WILL TRY OUR BEST.
