New Energy Battery Soft Connector 1060 Aluminum Strip O Temper High Tensile
| Place of Origin | Zhengzhou Henan |
|---|---|
| Brand Name | Henan Yongsheng |
| Certification | ISO, RoHS |
| Model Number | 1000 Series Aluminum Strip Foil |
| Minimum Order Quantity | 1 ton |
| Price | FOB, CIF, CFR, CNF, etc. |
| Delivery Time | 7-25 days after order confirmation |
| Payment Terms | L/C, D/A, D/P, T/T, , |
| Supply Ability | 5000 tons per month |
Product Details
| Grade | 1000 Series | Temper | O-H112, Etc |
|---|---|---|---|
| Thickness | 0.1mm, 0.2mm, 0.3mm | Width | 20mm, Customized |
| Customized Service | Yes | MOQ | 1 Ton |
| Certificate | ISO, RoHS | Delivery Time | 7-25 Days After Order Confirmation |
| Highlight | O Temper Aluminum Strip,New Energy Battery Aluminum Strip,1060 Aluminum Strip |
||
Product Description
New Energy Battery Soft Connector 1060 Aluminum Strip
Product Overview
This O Temper 1060 Aluminum Strip is specifically designed for new energy vehicle battery soft connectors. Available in thicknesses of 0.1mm, 0.2mm, and 0.3mm, it provides the ideal combination of lightweight properties and superior heat dissipation required for power battery applications.
Product Description
Power batteries are core components in new energy vehicles, providing essential energy for electric vehicles. To ensure sufficient power supply, multiple battery cells require series and parallel connections. The 1060 aluminum coil serves as an optimal soft connection material due to its excellent balance of lightweight characteristics and thermal management properties.
Material Properties
1060 aluminum strip foil belongs to the pure aluminum series, offering exceptional performance characteristics:
- High plasticity and formability
- Excellent corrosion resistance
- Superior electrical conductivity
- Outstanding thermal conductivity
- Good elongation and tensile strength
- Excellent weldability and formability
This material readily accommodates conventional stamping, stretching, and other processing requirements. Based on user feedback, the product demonstrates excellent fusion during welding processes, with no burrs, smooth surface finish, no oxidation, no stratification, firm welding joints, superior conductivity, and rapid heat dissipation.
Technical Specifications
1000 Series Aluminum (Commercial Pure Aluminum, Al >99.0%)
| Parameter | Specifications |
|---|---|
| Alloy | 1050, 1060, 1070, 1100 |
| Temper | H111, H112, H12/H22/H32, H14/H24/H34, H16/H26/H36, H18/H28/H38, H114/H194, etc. |
| Thickness | 0.1mm, 0.2mm, 0.3mm, etc. |
| Width | 20mm, customized options available |
| Color | Ecru, Black, Blue, Gold, Silver, Red, Rose-gold, custom colors |
| Application | Industrial |
| Features | High aluminum content, excellent rust resistance, corrosion prevention |
Aluminum Foil Strip Specifications
| Parameter | Specifications |
|---|---|
| Alloy Type | 1050, 1060, 1070, 1100, 1235, 1145, 3003, 3004, 5052, 5A02, 8006, 8011, 8021, 8079 |
| Thickness | 0.006 ~ 0.2mm |
| Width | 10mm ~ 1500mm |
| Temper | O ~ H112 |
| Yield | 0 ~ 560MPa |
| Ultimate Strength | 70 ~ 550MPa |
| Packaging | Seaworthy Export Standard Wooden Box |
| Use | Cigarette Packaging, Lamination and Food Packaging |
| Application | Medicine Packaging, Food Packaging, Cigarette Packaging, Tape Foil, etc. |
| Tolerances | As per customer requirements |
| MOQ | 3 tons |
| Coil ID | 76mm, 152mm and as per your requirements |
| Sample | Free |
| Delivery Time | 7-30 days after order confirmation |
| Loading Port | Qingdao Port, Tianjin Port, Shanghai port, etc. |
| Price Terms | FOB, CIF, CFR, CNF, etc. |
| Payment Terms | L/C, D/A, D/P, T/T, West Union, , etc. |

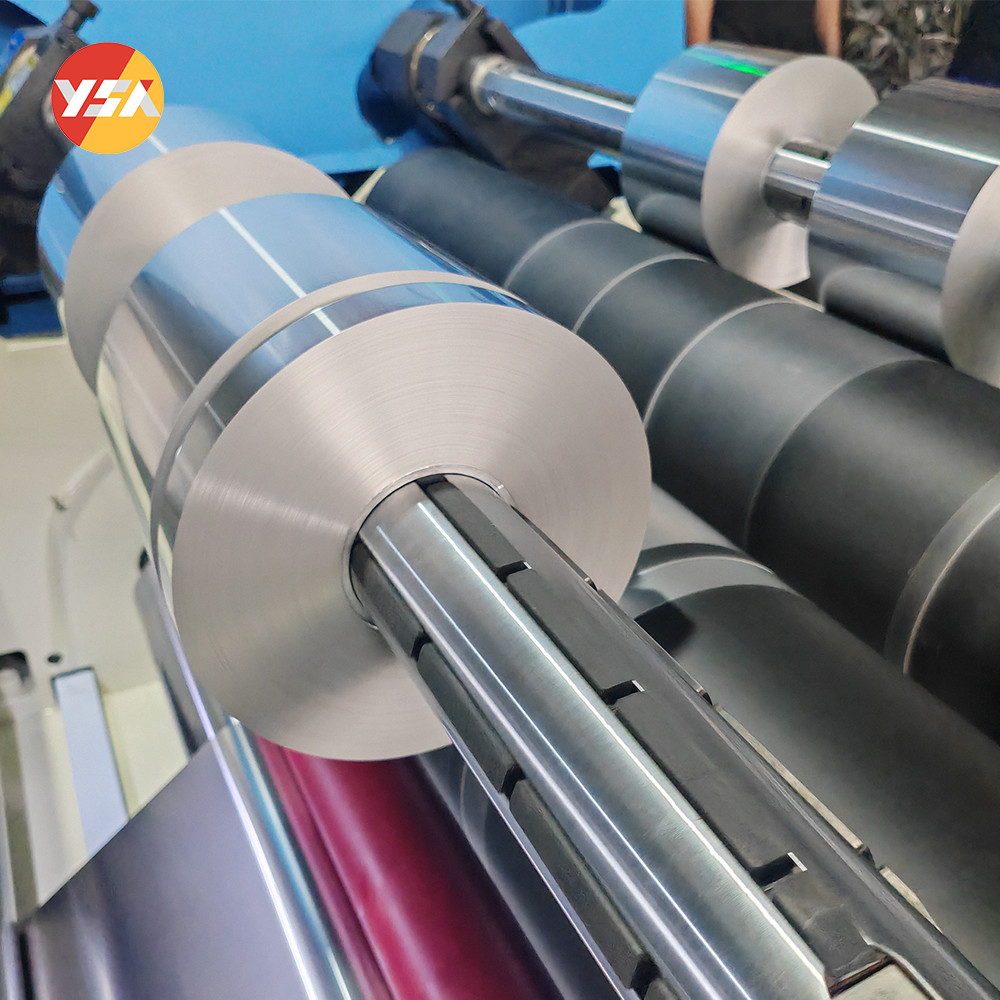

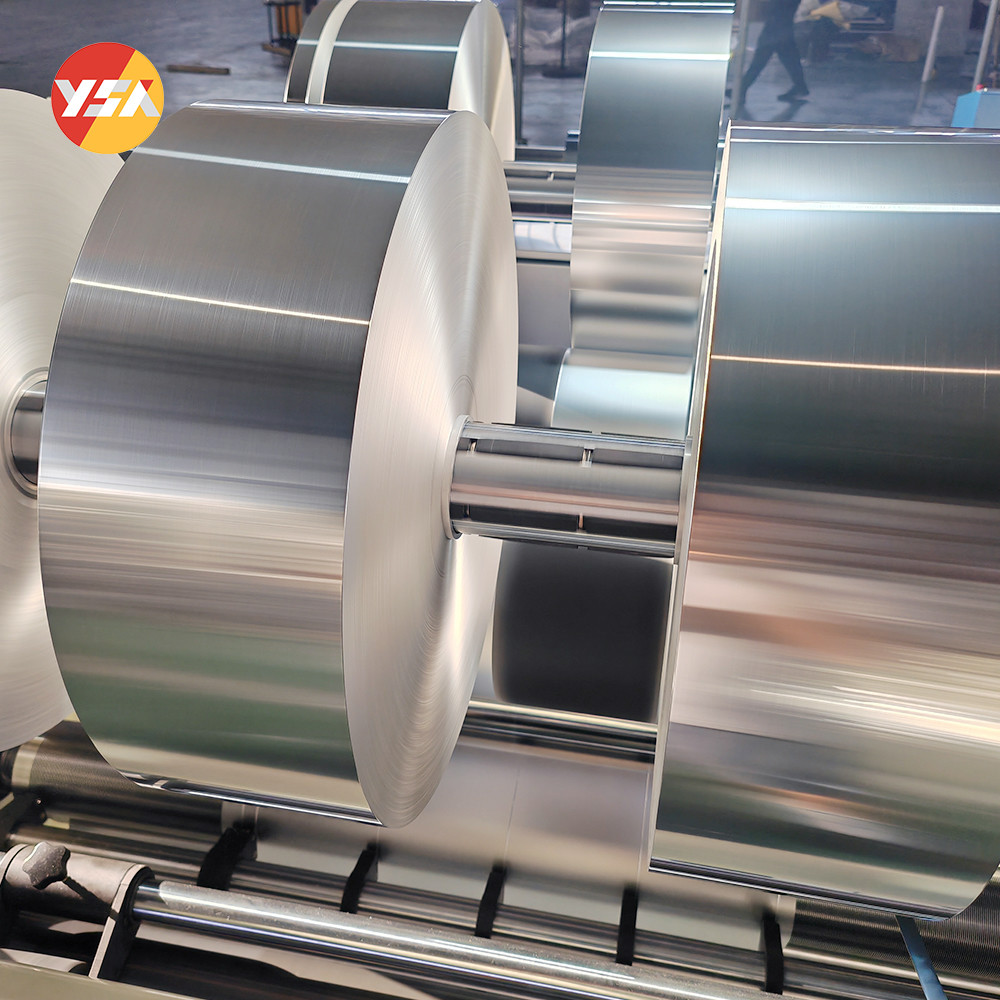

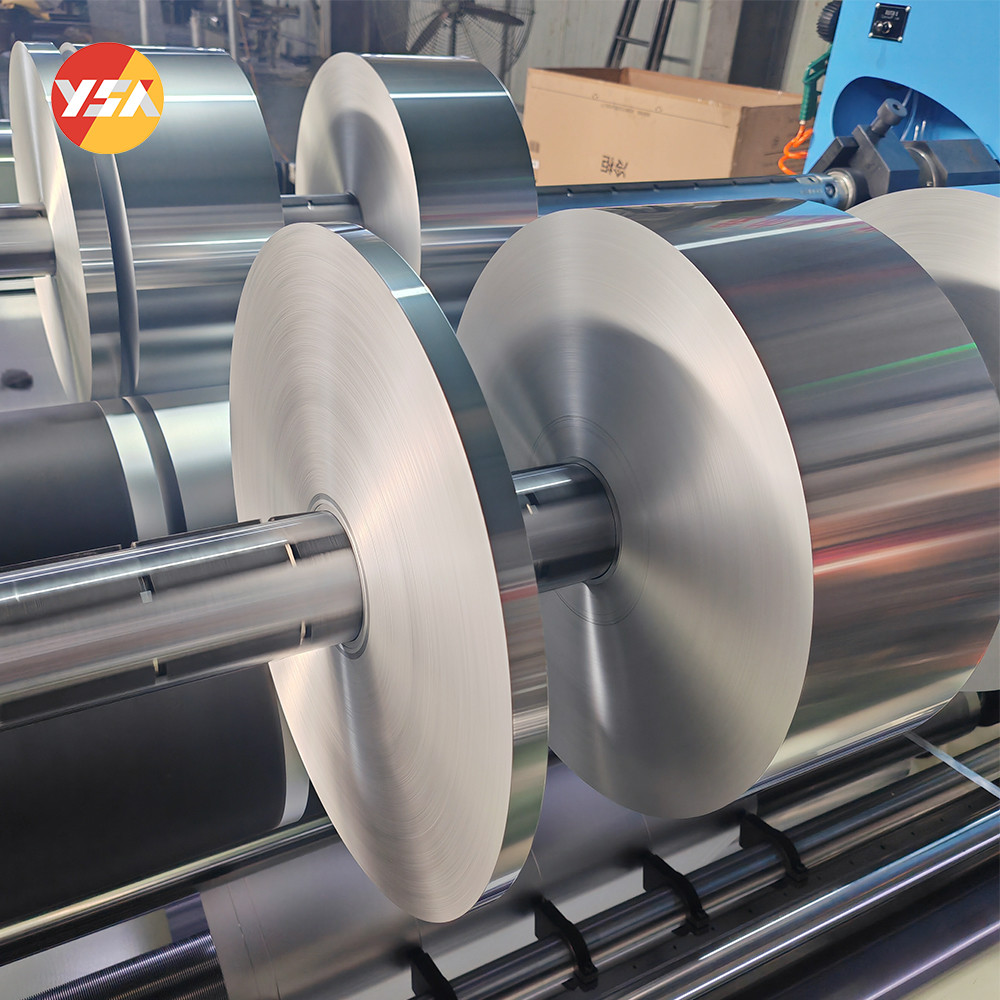

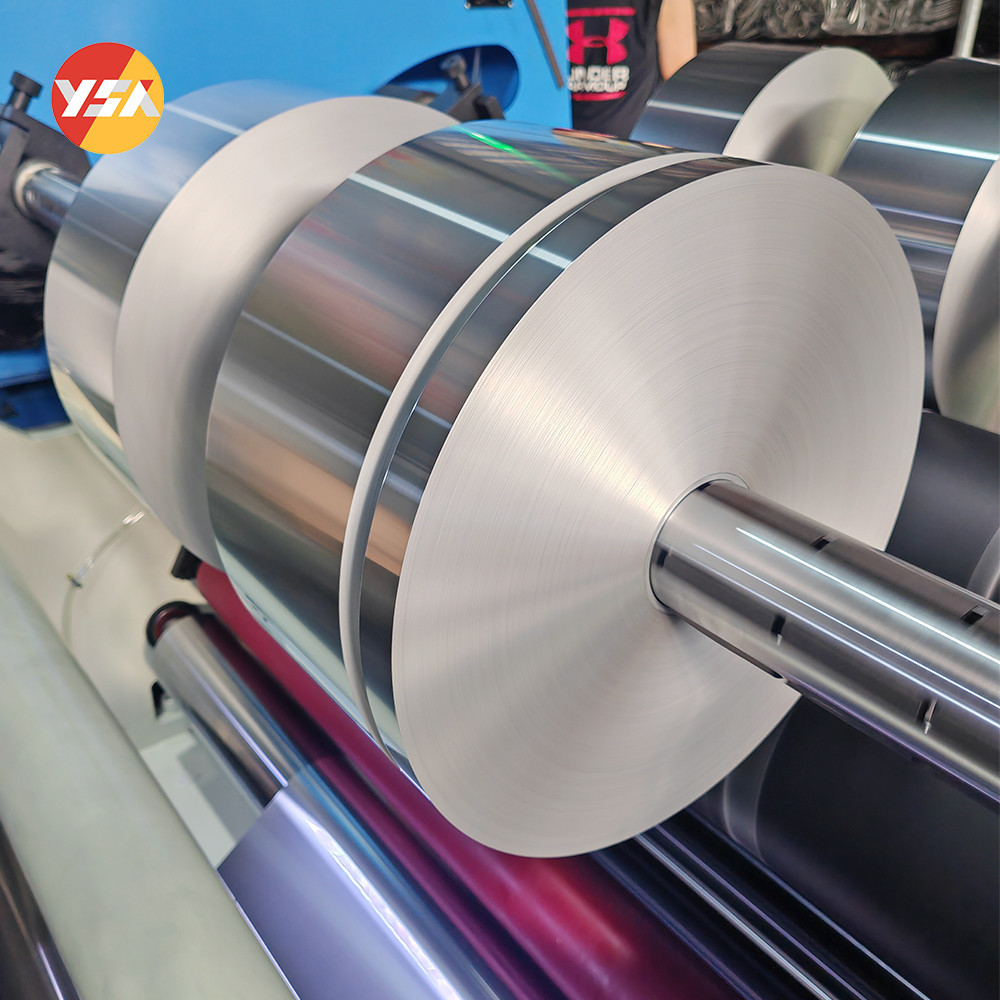

Product Gallery
Compliance and Certification
Every batch of this aluminum coil roll is produced under an ISO 9001:2015 quality management system and inspected against ASTM B209 and EN 573 for chemical composition, mechanical properties and dimensional tolerance. Documents are issued together with the shipment so buyers can clear customs and pass factory audits without extra paperwork.
- Mill Test Certificate: EN 10204 3.1 certificate with heat number traceability issued for every coil
- Third Party Inspection: SGS, BV or Intertek pre-shipment inspection supported on request
- RoHS and REACH: rolling oil, coating and packing materials free of restricted substances
- Customs Documents: certificate of origin, packing list and commercial invoice supplied with the bill of lading
- Quality Guarantee: thickness, width, tensile strength and surface re-checked before loading, with written claim response within 48 hours
For food contact and kitchenware projects, the 1050, 1060, 1100 and 3003 series are available in food grade quality meeting US FDA 21 CFR 175.300 and EU 10/2011 requirements, supported by migration test reports and a food contact declaration.
