1xxx 3xxx Aluminium Circle Plate
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Aluminium Circle Plate | Place Of Origin | China |
|---|---|---|---|
| Brand | Yongsheng Aluminum Industry Co., Ltd. | Alloy/Grade | 1000series-8000series |
| Temper | O - H112 , T3 - T8 , T351 - T851 | Thickness | 0.5mm - 6.0mm |
| Loading Port | China Main Port | Payment Terms | L/C,D/A,D/P,T/T , West Union, Money Gram, Etc. |
| Highlight | 1xxx 3xxx Aluminium Circle Plate,h112 Aluminium Circle Plate,0.5mm Aluminium Circle Plate |
||
Product Description
1xxx & 3xxx Aluminum Circle Plates
YONGSHENG Aluminum specializes in manufacturing high-quality 1xxx and 3xxx series aluminum circle plates for cookware and lighting applications. Our products include pure aluminum circles (1050, 1060, 1070, 1100) and alloy aluminum circles (3003), available in both heat-treated and non-heat-treated variants.
Product Overview
As a leading aluminum manufacturer with over 20 years of experience, we produce comprehensive aluminum products including plates, sheets, coils, strips, and discs for various industrial applications.
Material Characteristics
1xxx Series Aluminum
- Contains over 99.00% aluminum content
- Excellent electrical conductivity
- Superior corrosion resistance
- Excellent welding performance
- Moderate strength suitable for conventional industrial applications
3xxx Series Aluminum
- Manganese-based alloy (1.0%-1.5% content)
- Enhanced rust prevention properties
- Excellent corrosion resistance
- Superior welding capability
- High plasticity for forming applications
Technical Specifications
| Alloy | State | Thickness (mm) | Tensile Strength (Mpa) | Yield Strength (Mpa) | Elongation (%) | Hardness (HV) |
|---|---|---|---|---|---|---|
| 1060 (1050) | 0 | > 0.2-0.5 | 60-100 | ≥ 15 | ≥ 20 | 20-30 |
| > 0.5-1.0 | 60-100 | ≥ 15 | ≥ 30 | |||
| > 1.0-4.0 | 60-100 | ≥ 15 | ≥ 35 | |||
| H22 | > 0.2-0.5 | 80-120 | ≥ 60 | ≥ 12 | 30-40 | |
| > 0.5-1.0 | 80-120 | ≥ 60 | ≥ 15 | |||
| > 1.0-4.0 | 80-120 | ≥ 60 | ≥ 18 | |||
| H24 | > 0.2-0.5 | 95-135 | ≥ 70 | ≥ 6 | 35-45 | |
| > 0.5-1.0 | 95-135 | ≥ 70 | ≥ 8 | |||
| > 1.0-4.0 | 95-135 | ≥ 70 | ≥ 10 | |||
| H26 | > 0.2-0.5 | 110-155 | ≥ 75 | ≥ 2 | 43-55 | |
| > 0.5-1.0 | 110-155 | ≥ 75 | ≥ 4 | |||
| > 1.0-4.0 | 110-155 | ≥ 75 | ≥ 6 | |||
| H18 | > 0.2-0.5 | ≥ 125 | ≥ 85 | ≥ 2 | 50-65 | |
| > 0.5-1.0 | ≥ 125 | ≥ 85 | ≥ 3 | |||
| > 1.0-4.0 | ≥ 125 | ≥ 85 | ≥ 4 |
Product Parameters
- Alloy/Grade: 1000-8000 Series
- Temper: O-H112, T3-T8, T351-T851
- Thickness: 0.5mm - 6.0mm
- Diameter: 80mm - 1000mm
- Surface Treatment: Mill Finish, Coated, Anodized, Polished Mirror
- Elongation: > 23%
- Delivery Time: 7-30 days
- Package: Wooden Pallets
- MOQ: 1 ton
Applications
Cookware Applications
- Cooking wares and utensils
- Cookers and frypans
- Pots and kettles
Engineering Applications
- Light reflectors and lamp covers
- Automotive components
- Lighting industry products
- Electrical appliances
- Traffic signs and reflectors

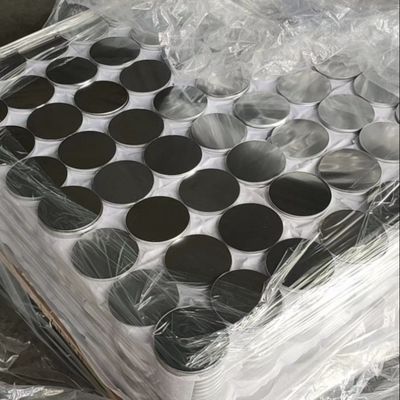

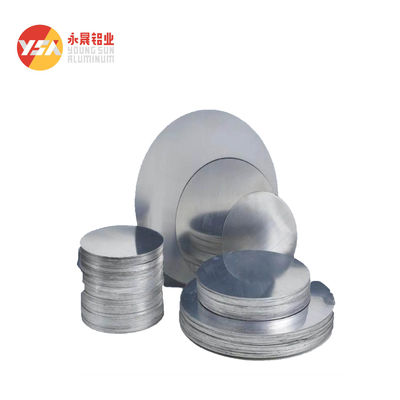

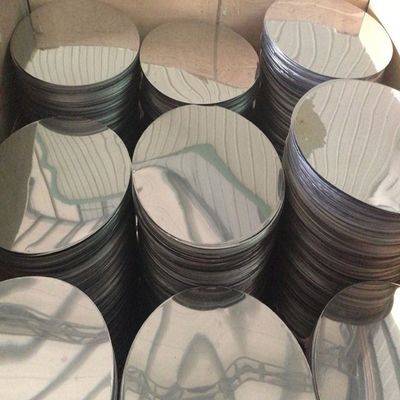

Product Images
Company Information
HENAN YONGSHENG Aluminum Co., Ltd. is located in Gongyi City Industrial Cluster Area, Henan Province. Our 100,000 square meter facility employs 476 professionals and produces over 200,000 tons annually, with exports accounting for more than 40% of production.
Quality Assurance
- Sample provision available via major couriers
- Pre-production samples for all mass production orders
- Final inspection conducted before shipment
Order & Shipping Information
- Production Time: 7-15 working days
- Stock Availability: 10,000 tons of various sizes
- Shipping: Cost varies by order size and shipping method
Why Choose YONGSHENG Aluminum?
- 20 years of aluminum industry expertise
- Direct manufacturer with advanced equipment
- Competitive pricing with fast delivery
- Professional technical solutions
Services Provided
- Delivery Terms: FOB, CFR, CIF, EXW, CIP, CPT, DDP, DDU
- Payment Methods: T/T, L/C, D/P, D/A, Credit Card, PayPal, Western Union
- Languages: English, Chinese, Spanish, Japanese, Portuguese, Korean
Packaging Details
- 20MT capacity per 20-foot container (recommended for cost efficiency)
- Three-layer protective packaging with fiber, foam, and plastic
- Wooden or steel pallets available per customer request
- Secure container fixing to prevent transportation damage
- 24 wooden boxes per 20-foot container
Reliable quality, competitive pricing, and prompt delivery guaranteed.
Contact us with your requirements - we will provide our best solution.
