Board Batten 5052 Aluminum Coil 5051 Aluminium Strip 1mm Thick
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Aluminum Strip | Place Of Origin | China |
|---|---|---|---|
| Brand Name | Yongsheng Aluminum Industry Co., Ltd. | Alloy/Grade | 1000series-8000series |
| Temper | O-H112，T3-T8 | Hardness | ≥20(HV) |
| Width | 3mm-2000m | Yield (≥ MPa) | 15-85 |
| Highlight | 5051 Aluminium Strip 1mm Thick,5052 Aluminium Strip 1mm Thick,2000m 5052 aluminum coil |
||
Product Description
Board Batten 5052 Aluminum Coil & 5051 Aluminum Strip - 1mm Thick
Product: Board Batten 5052 Aluminum Coil & 5051 Aluminum Strip - 1mm Thick
Aluminum strip is a deep-processed product formed by slitting aluminum coil and serves as an important industrial raw material. As electrical conductivity of aluminum is second only to copper, aluminum strip is increasingly replacing copper strip in electronic products worldwide.
Aluminum strip has numerous applications including aluminum composite pipes, cables, optical cables, transformers, heaters, blinds, and more. Classified into 8 series based on alloying elements, the most commonly used series are 1000, 3000, 5000, and 8000.
Aluminum Series Characteristics
- 1000 Series: Contains over 99.00% aluminum with excellent electrical conductivity, corrosion resistance, and welding performance. Lower strength makes it suitable for conventional industrial applications.
- 2000 Series: High hardness with 3-5% copper content. Additional elements like manganese, magnesium, lead, and bismuth enhance machinability. Primarily used in aviation applications.
- 3000 Series: Manganese-based (1.0-1.5%) with excellent corrosion resistance, weldability, and plasticity. Ideal for rust-prevention applications.
- 5000 Series: Magnesium-based alloy with low density, high tensile strength, excellent elongation, and good fatigue strength. Cannot be heat-treated. Widely used in conventional industry.
- 6000 Series: Contains magnesium and silicon, suitable for applications requiring corrosion resistance and oxidation protection.
- 7000 Series: Aerospace-grade aluminum-magnesium-zinc-copper alloy. Heat-treatable super hard aluminum with good wear resistance and weldability, though corrosion resistance is limited.
Our company utilizes advanced aluminum industry equipment and employs experienced engineers with extensive practical expertise. We maintain precise control over technical standards, chemical composition, and physical properties throughout production. Our aluminum strip products are recognized for high precision and consistent quality, earning long-term customer satisfaction.
Technical Specifications - 5052/5251 Alloy
| State | Thickness (mm) | Tensile Strength (Mpa) | Yield Strength (Mpa) | Elongation (%) | Hardness (HV) |
|---|---|---|---|---|---|
| O | > 0.2-0.5 | 170 - 215 | ≥ 65 | ≥ 14 | 50 - 70 |
| > 0.5-1.0 | 170 - 215 | ≥ 65 | ≥ 17 | ||
| > 1.0-4.0 | 170 - 215 | ≥ 65 | ≥ 20 | ||
| H22 | > 0.2-0.5 | 210 - 260 | ≥ 130 | ≥ 8 | 70 - 85 |
| > 0.5-1.0 | 210 - 260 | ≥ 130 | ≥ 10 | ||
| > 1.0-4.0 | 210 - 260 | ≥ 130 | ≥ 10 | ||
| H24 | > 0.2-0.5 | 230 - 280 | ≥ 150 | ≥ 4 | 80 - 110 |
| > 0.5-1.0 | 230 - 280 | ≥ 150 | ≥ 6 | ||
| > 1.0-4.0 | 230 - 280 | ≥ 150 | ≥ 6 | ||
| H26 | > 0.2-0.5 | 250 - 300 | ≥ 180 | ≥ 2 | 85 - 115 |
| > 0.5-1.0 | 250 - 300 | ≥ 180 | ≥ 4 | ||
| > 1.0-4.0 | 250 - 300 | ≥ 180 | ≥ 6 | ||
| H18 | > 0.2-0.5 | ≥ 270 | ≥ 240 | ≥ 2 | |
| > 0.5-1.0 | ≥ 270 | ≥ 240 | ≥ 2 | ||
| > 1.0-4.0 | ≥ 270 | ≥ 240 | ≥ 3 |
Technical Data
- Alloy/Grade: 1000, 2000, 3000, 5000, 6000, 7000, 8000 Series
- Temper: O-H112, T3-T8, T351-T851
- Thickness: 0.13mm - 6.5mm
- Width: 3mm - 2600mm
- Length: Customized to requirements
- Size: Customized specifications
- Feature: Eco-friendly
- Package: Wooden Pallets
- Type: High Purity Aluminum Strip
- Color: Silver
- Shape: Aluminum Strip
- Hardness: O/HO
- Conductivity (%IACS): ≥61.5
- Elongation (%): > 23
- Tolerances: As per requirements
- Application: Industry, Decoration, Building, Packing, Pressing, etc.
- Surface Treatment: Mill Finish, Coated, Powder Coated, Anodized, Polished Mirror, Embossed, etc.
- Special Specifications: Available upon request
- Delivery Time: 7-30 days after order confirmation
- MOQ: 1 ton
- Coil ID: As per requirements
Applications
- Transformer aluminum strip (aluminum foil for transformers)
- High-frequency welding hollow aluminum strip
- Finned radiator aluminum strip
- Cable aluminum strip
- Stamping aluminum strip
- Edge strip aluminum, etc.
Aluminum Alloy Belt Categories
- Pure aluminum strip
- Transformer aluminum strip
- Super hard aluminum strip
- All soft aluminum strip
- Semi hard aluminum strip
- Rust proof aluminum strip

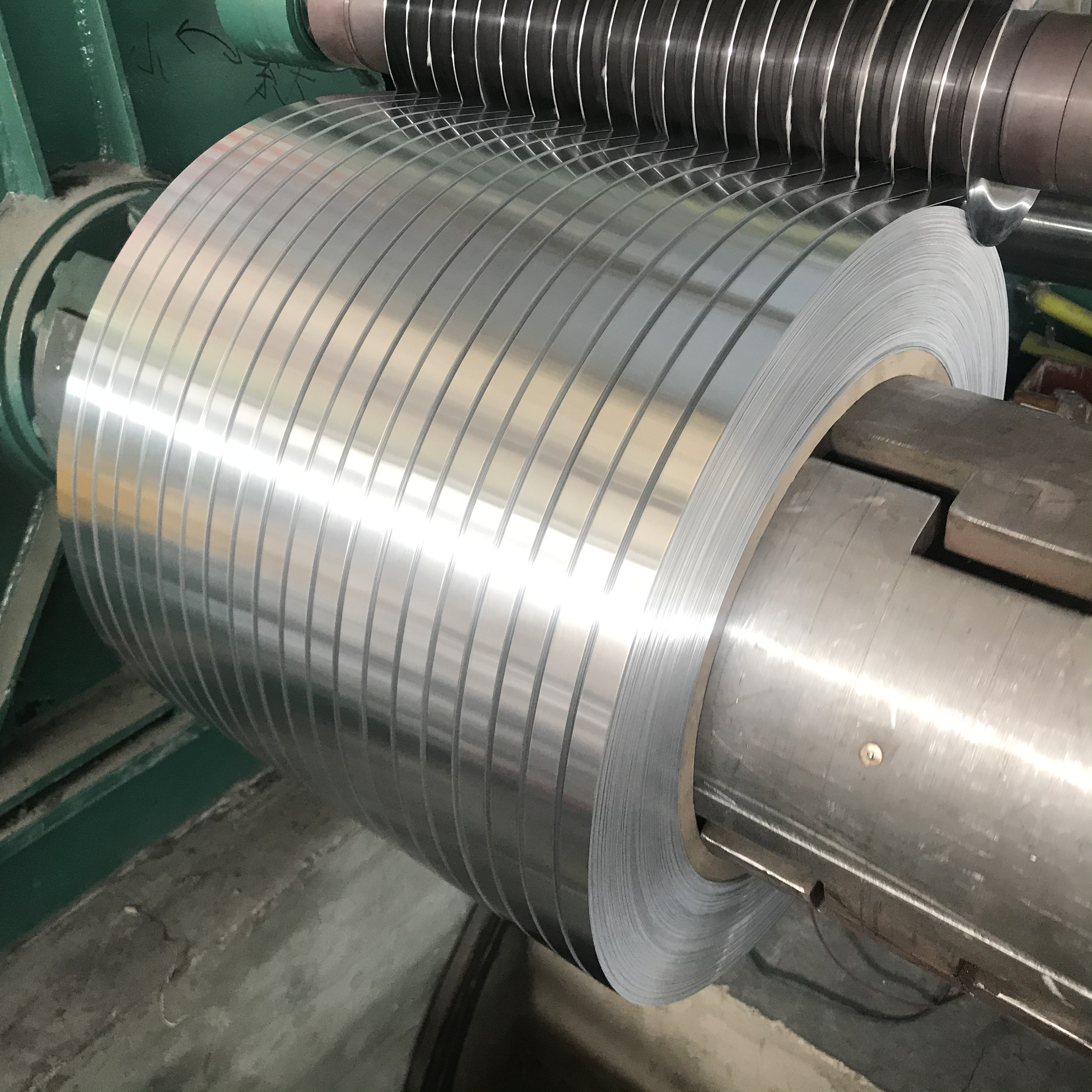

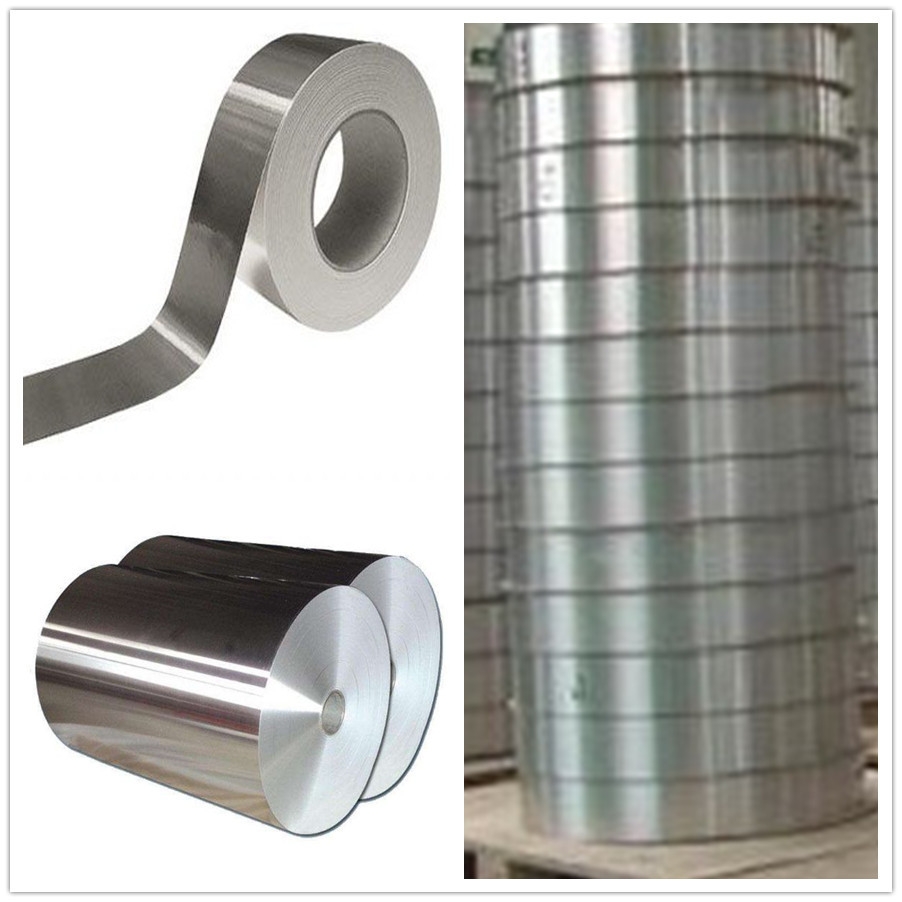

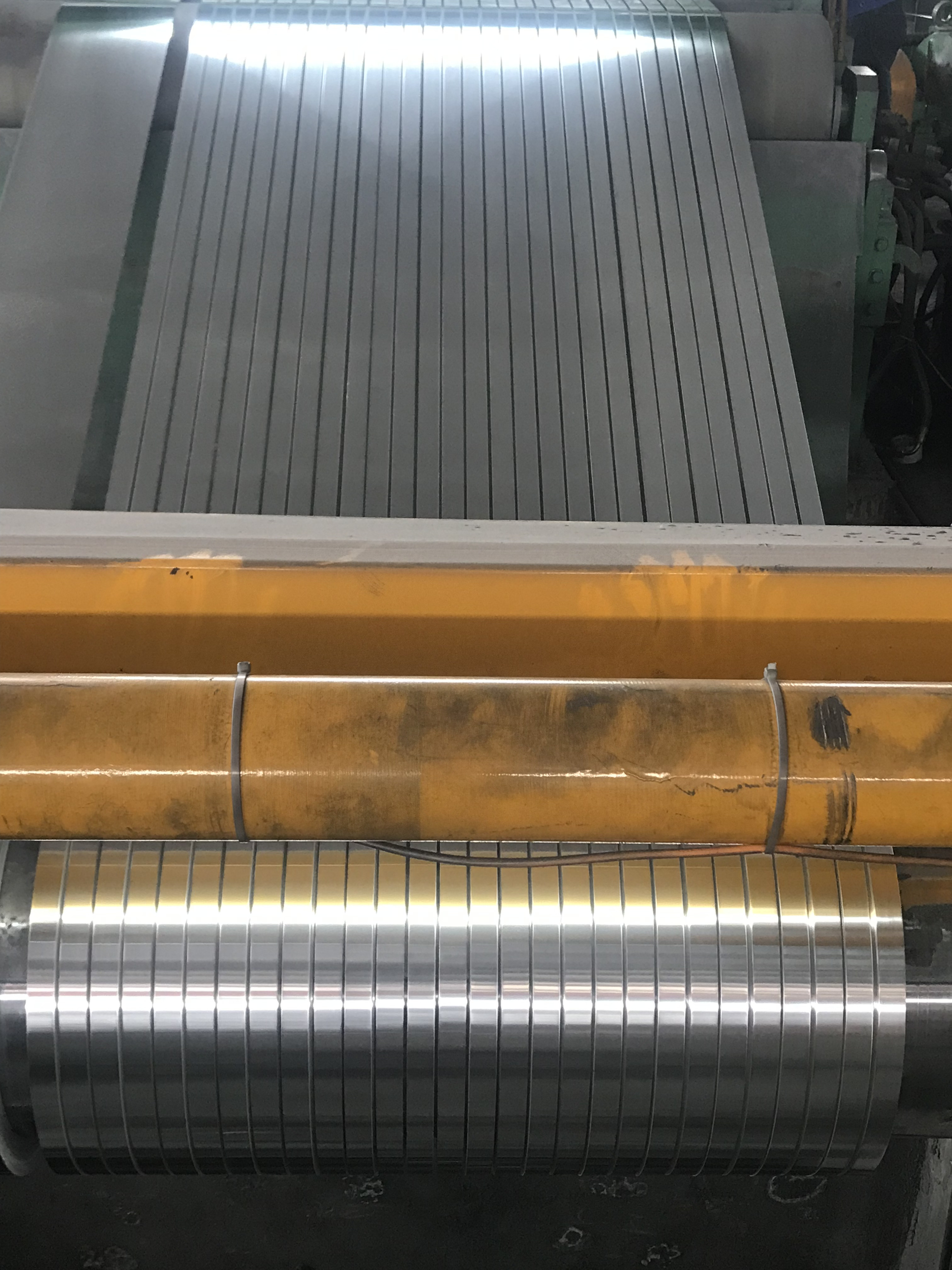

Product Images
Frequently Asked Questions
Who are we?
Henan Yongsheng Aluminum Co., Ltd. is located in Gongyi City Industrial Cluster Area, Henan Province. Our factory specializes in aluminum products including Aluminum Strip, Color Aluminum, Aluminum Sheet, Aluminum Coil, Pressed Aluminum Product, Embossed Aluminum, and non-slip aluminum Sheet. Covering 100,000 square meters with 476 employees, we operate 20 casting processing lines, 2 color coated aluminum coil lines, 3 slitting lines, 4 shearing lines, 32 punch presses, 10 CNC lathes, and 4 embossed aluminum production lines. Annual output exceeds 200,000 tons with exports accounting for over 40%.
How can we guarantee quality?
We provide samples via TNT, DHL, FEDEX, EMS, UPS or direct delivery. Always conduct pre-production sampling before mass production and final inspection before shipment.
How long will it take to execute my order?
Our standard production time is 7-15 working days.
How much will the shipping cost be?
Shipping costs depend on order size, weight, and shipping method selected.
Do you have products in stock?
We maintain 10,000 tons of inventory across various sizes. Please inform us of your requirements for current stock details.
Why should you buy from us instead of other suppliers?
20 years experience in aluminum industry; Source manufacturer with leading equipment and skilled team; Competitive pricing with fast delivery and excellent quality; Professional technical solutions.
What services can we provide?
Delivery Terms: FOB, CFR, CIF, EXW, CIP, CPT, DDP, DDU
Payment Currency: USD, EUR, HKD, GBP, CNY
Payment Methods: T/T, L/C, D/P D/A, Credit Card, PayPal, Western Union, Cash, Escrow
Languages: English, Chinese, Spanish, Japanese, Portuguese, Korean
Packing Conditions
Packing Details:
- 20MT capacity in 20-foot container (recommended for lower sea freight rates)
- Three-layer protective packaging: thick fiber, foam, plastic with sufficient drying agent for long-distance sea transport
- Wooden or steel pallets available per customer request
- External packing with wooden boxes
- Container securing to prevent transportation damage
- 24 wooden boxes per 20ft container
We guarantee reliable quality, competitive pricing, and prompt delivery. Tell us what you need, and we will do our best to meet your requirements.
