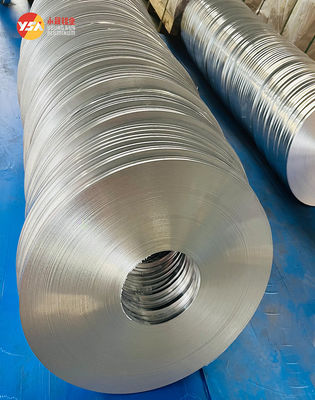

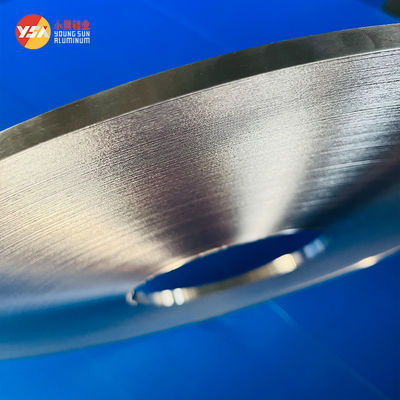

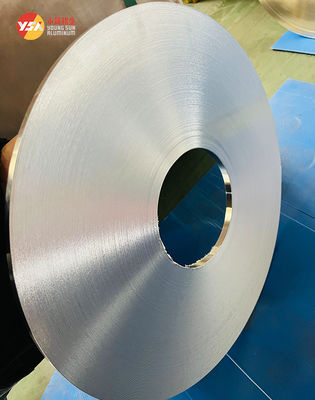

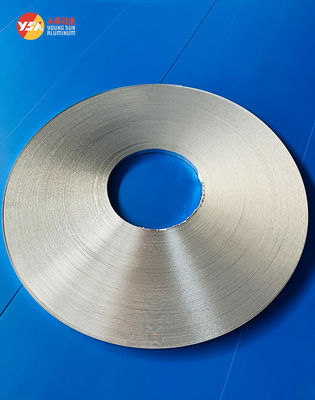

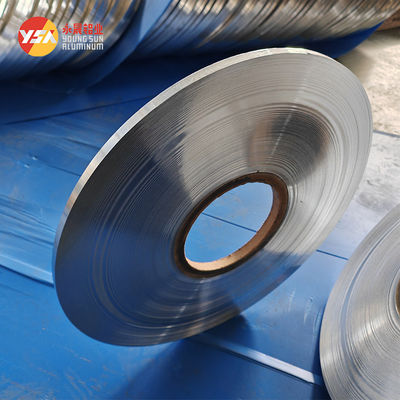

High Pressure Thin Aluminum Strip 1050 O 0.3mm 40mm High Tensile Slit Roll
| Place of Origin | Zhengzhou Henan |
|---|---|
| Brand Name | Henan Yongsheng |
| Certification | ISO, RoHS |
| Model Number | 1050 Aluminum Strip |
| Minimum Order Quantity | 1 ton |
| Price | FOB, CIF, CFR, CNF, etc. |
| Packaging Details | Seaworthy Export Standard Wooden Box |
| Delivery Time | 7-25 days after order confirmation |
| Payment Terms | L/C, D/A, D/P, T/T, , |
| Supply Ability | 5000 tons per month |
Product Details
| Alloy | 1050 | Product Name | High Pressure Thin Aluminum Strip 1050 O Temper |
|---|---|---|---|
| Temper | O-H112, Etc | Thickness | 0.3mm, 0.5mm, 0.9mm |
| Width | 40mm, 55mm, 90mm | Electrical Conductivity | ≥58 |
| Technical Requirements | Chamfering, Deburring | Weight | ＜450KG |
| Highlight | 0.3x40mm Aluminum Strip,0.9x55mm Aluminum Strip,High Pressure Thin Aluminum Strip |
||
Product Description
High Pressure Thin Aluminum Strip 1050 O
Available in dimensions: 0.3x40mm, 0.5x40mm, 0.9x55mm, 0.9x90mm
Product Overview
High Voltage Narrow Aluminum Strip 1050 O is a specialized aluminum alloy material engineered for high voltage applications, offering exceptional electrical conductivity and reliability in demanding environments.
Aluminum Alloy 1050
1050 aluminum alloy is a pure aluminum composition with aluminum content typically exceeding 99.5%. It delivers excellent electrical conductivity, thermal conductivity, and corrosion resistance. While its strength is relatively low, it offers superior ductility and formability, making it suitable for various manufacturing processes.
O Temper (Annealed)
The O temper indicates the aluminum alloy has undergone annealing treatment, resulting in softened material with excellent ductility. In this state, aluminum exhibits lower strength but higher plasticity and toughness, facilitating easy processing and forming operations.
Key Characteristics
- High Conductivity: Excellent electrical conductivity ideal for electrical applications
- Superior Corrosion Resistance: High aluminum content provides effective oxidation resistance in various environments
- Excellent Formability: Easy processing and forming capabilities in O temper state
- Lightweight: Aluminum's inherent lightness reduces weight in high-voltage applications
Applications
- Electrical Industry: Cables, wires, and electrical components
- Pressure Vessels: Storage and transportation containers for high-pressure gases or liquids
- Construction Industry: Supporting and connecting components in building structures requiring high conductivity
- Automotive & Aerospace: Lightweight design elements and structural components with strength requirements
Technical Specifications
Mechanical Properties
| Alloy | Temper | Thickness (mm) | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) | Hardness (HV) |
|---|---|---|---|---|---|---|
| 1060 (1050) | O | >0.2-0.5 | 60-100 | ≥15 | ≥20 | 20-30 |
| >0.5-1.0 | 60-100 | ≥15 | ≥30 | 20-30 | ||
| >1.0-4.0 | 60-100 | ≥15 | ≥35 | 20-30 | ||
| 1060 (1050) | H22 | >0.2-0.5 | 80-120 | ≥60 | ≥12 | 30-40 |
| >0.5-1.0 | 80-120 | ≥60 | ≥15 | 30-40 | ||
| >1.0-4.0 | 80-120 | ≥60 | ≥18 | 30-40 | ||
| 1060 (1050) | H24 | >0.2-0.5 | 95-135 | ≥70 | ≥6 | 35-45 |
| >0.5-1.0 | 95-135 | ≥70 | ≥8 | 35-45 | ||
| >1.0-4.0 | 95-135 | ≥70 | ≥10 | 35-45 | ||
| 1060 (1050) | H26 | >0.2-0.5 | 110-155 | ≥75 | ≥2 | 43-55 |
| >0.5-1.0 | 110-155 | ≥75 | ≥4 | 43-55 | ||
| >1.0-4.0 | 110-155 | ≥75 | ≥6 | 43-55 | ||
| 1060 (1050) | H18 | >0.2-0.5 | ≥125 | ≥85 | ≥2 | 50-65 |
| >0.5-1.0 | ≥125 | ≥85 | ≥3 | 50-65 | ||
| >1.0-4.0 | ≥125 | ≥85 | ≥4 | 50-65 |
General Specifications
| Parameter | Specification |
|---|---|
| Alloy/Grade | 1000, 3000, 5000, 6000, 8000 Series |
| Temper | O-H112, T3-T8, T351-T851 |
| Thickness | 0.1mm-6.5mm |
| Width | 3mm-2600mm |
| Length | As customer's requirement |
| Application | Industry, Decoration, Building, Packing, Pressing, Etc. |
| Surface Treatment | Mill Finish, Coated, Powder Coated, Anodized, Polished mirror, Embossed, Etc. |
| Tolerances | As customer's requirement |
| Delivery Time | 7-25 days after order confirmation |
| MOQ | 1 ton |
| Loading Port | Qingdao Port, Tianjin Port, Shanghai port |
| Price Terms | FOB, CIF, CFR, CNF, etc. |
| Payment Terms | L/C, D/A, D/P, T/T, West Union, , Etc. |
| Standards | ASTM-B209, EN573-1, GB/T3880.1-2006 |
| Certificate | ISO, RoHS |
| Special Requirements | Available on customer's requirement |
Product Gallery
Compliance and Certification
Every batch of this aluminum coil roll is produced under an ISO 9001:2015 quality management system and inspected against ASTM B209 and EN 573 for chemical composition, mechanical properties and dimensional tolerance. Documents are issued together with the shipment so buyers can clear customs and pass factory audits without extra paperwork.
- Mill Test Certificate: EN 10204 3.1 certificate with heat number traceability issued for every coil
- Third Party Inspection: SGS, BV or Intertek pre-shipment inspection supported on request
- RoHS and REACH: rolling oil, coating and packing materials free of restricted substances
- Customs Documents: certificate of origin, packing list and commercial invoice supplied with the bill of lading
- Quality Guarantee: thickness, width, tensile strength and surface re-checked before loading, with written claim response within 48 hours
For food contact and kitchenware projects, the 1050, 1060, 1100 and 3003 series are available in food grade quality meeting US FDA 21 CFR 175.300 and EU 10/2011 requirements, supported by migration test reports and a food contact declaration.
